I drilled a hole into my drywall and hit a metal stud. I don't have a drill bit for metal. I have 5/16" plastic wall anchors that will hold 85 lbs in drywall. Can I cut the plastic anchor so it's shorter in order to fit in the hole where the stud is? I only have a 24" wide space to put up shelves and I tried drilling 2" to the right of each hole but I'm still hitting the stud. My 22"w shelf installation bracket needs a hole on either side and one in the middle. The one on the right is fine. The middle and left are hitting studs. The bracket is centered so there is a one inch clearance on either side. My studs clearly aren't spaced properly. This horizontal bracket will hold 2 vertical brackets, which will then hold 4 shelves. If I cut the anchors, I'm afraid it won't be strong enough. I only have 1/4" drywall. Can I cut the anchors? Or does anyone have another suggestion. I need to use this space for my shelves. I can't use another wall.

Paula
  • 11
  • 2
  • 1
    If you hit a metal stud, a little bit of pushing will get a "wood" drill bit right through it. If you hit a metal protection plate on a stud, your "wood" bit will struggle to get through it and that's a good thing! That protection plate is hiding plumbing or electrical behind it. Have you considered moving your shelf up or down by an inch or two? – FreeMan Oct 15 '23 at 16:40
  • Why would I move it up or down? Won't the metal still be there? – Paula Oct 15 '23 at 16:47
  • 5
    1/4 inch drywall is good for holding paint. I would not trust it to hold any weight. Using the metal studs would be a better idea. – crip659 Oct 15 '23 at 16:49
  • lol. just didn't know how to drill thru metal stud. I'll try to push harder. Thanks, – Paula Oct 15 '23 at 16:58
  • 3
    If you move up or down and drill another hole, either you'll not hit metal but wood instead meaning that what you hit the first time was a protection plate that you do NOT want to drill through. If you hit metal again it means you've got a metal stud and should be safe drilling through it. – FreeMan Oct 15 '23 at 17:06
  • I know I have metal studs. – Paula Oct 15 '23 at 17:17
  • I drilled again and got the anchors in. Now I just have to get the screws to screw all the way into them. Again, the one on the right is fine, but the other 2 are taking a lot to screw them in all the way. Using a manual screwdriver now bc the drill was starting to strip the screw heads. – Paula Oct 15 '23 at 17:19
  • 6
    why would you use drywall anchors when you can attach to the stud instead? – jsotola Oct 15 '23 at 17:40
  • Jstola - i have metal studs – Paula Oct 15 '23 at 17:43
  • 5
    Screws into metal studs work fine. Sheet metal screws especially, but depending on what you've hanging that may not be necessary. – keshlam Oct 15 '23 at 20:38
  • 2
    N.B.: the anchor might be rated for 85 lb, but the drywall is not. – DrMoishe Pippik Oct 15 '23 at 21:19
  • 3
    Throw away the drywall anchors. The 85# is probably for shear in 1/2" drywall. Shelving implies tension load, not shear load. You need to anchor sheet metal screws directly into the studs. Depending on the geometry of the brackets and weight on the shelves, there's a good chance the shelves as anchored will fall off your wall. At least post a picture of the shelving or link to its marketing material. – popham Oct 16 '23 at 04:07

1 Answers1

3

Shelves hold loads eccentric from the wall, causing the upper fasteners to work in tension to keep things stable. When your drywall fastener says that it's rated for 85 pounds, this is probably 85 pounds of shear when anchored in 1/2" drywall and for items that cling close to the wall like mirrors, pictures, etc. Quarter inch drywall implies that you're probably getting 42.5 pounds of shear strength with your fasteners. For tension, the strength rating will be smaller that the shear rating if there's even a tension rating for your fasteners at all. If you can't find a positioning that puts all three anchorage points on studs, then I would probably drill a new hole through the horizontal bracket that aligns with the stud. Without seeing the actual shelf, I can't say for sure.

If you hit metal in a wall, then your first instinct should be "I just hit a protection plate," where these plates exist to protect plumbing, electrical wiring, and gas lines from screws. I don't want to be responsible for somebody puncturing a gas line, so please, please, please verify that you're not drilling through a protection plate.

If you have metal studs, however, then you want self-drilling sheet metal screws. These have a drilling tip intended for cutting a pilot hole for the sheet metal screws to follow (see below). One of their virtues is that these screws would take a tremendous amount of effort to puncture a protection plate--sorry for carrying on about those. Self drilling screws include the self drilling tip in their named length, e.g. 3/4" screws would be too short for a 5/8" total thickness application. For your screw lengths, I would add 1/2" to your total thickness to get a few threads through everything (your total thickness includes your metal stud, the drywall, and your shelf bracket--no protection plate in there).

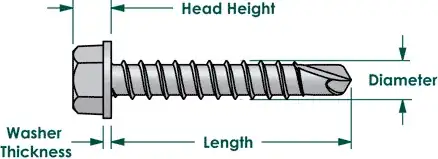

Here's what those screws look like, although you can get different driver types:

Self drilling sheet metal screw
