Openlog + Lilypad Simple board - not writing to SD card

Asked Jan 22 '15 at 17:31

Active Jan 22 '15 at 17:31

Viewed 504 times

I'm desperately trying to get my openlog to work and write data out to a micro SD card with no luck.

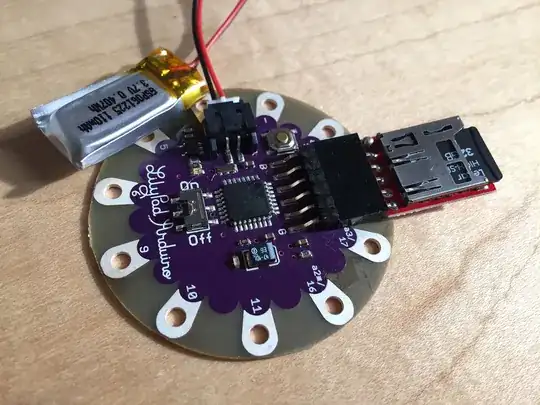

I'm using a battery-powered lilypad arduino simple board and have attached L-shaped female headers to to the openlog to plug it right in. I am also using an FTDI breakout with the lilypad to download code and that is working. I think i have matched the RX and TX properly by flipping the openlog over as it pictured in the images attached. I'm using the example code included on the sparkfun openlog page just to test:

https://github.com/sparkfun/OpenLog/blob/master/firmware/examples/OpenLog_Test_Sketch/OpenLog_Test_Sketch.ino

There are no lights lit on the openlog which might indicate a power issue - but it's super unclear.

Any ideas or help very welcome!

enter image description here

asked Jan 22 '15 at 17:31

claudybee

Are you sure all the pins match up, except for TX/RX? – Ignacio Vazquez-Abrams Jan 22 '15 at 17:49
1

In your picture you are using a 32 gig card. In addition to being expensive overkill, that is probably SDXC and may not be something the logger supports. – Chris Stratton Jan 23 '15 at 09:34
It's not overkill, it's a card I already had using it in camera. That's not the issue - it's not getting power. – claudybee Jan 24 '15 at 00:23

Openlog + Lilypad Simple board - not writing to SD card

0 Answers0
