Trying to program an ATTTYIN1614 with jtag2updi.

https://github.com/ElTangas/jtag2updi

I was able to use this tool to program an ATTINY1626-XFR and ATTINY807-MNR, but I'm getting an error with ATTINY1614-SSFR.

avrdude: Expected signature for ATtiny1614 is 1E 94 22
         Double check chip, or use -F to override this check.
timemage
  • 5,181
  • 1
  • 13
  • 25
EdHayes3
  • 160
  • 9
  • If you want to make the answer follow more from the question, the part of the avrdude output listing that shows the signature that was actual read would be helpful. – timemage Jul 28 '21 at 23:18
  • @EdHayes3 if you do not indent the URL, then it becomes clickable ... indented lines are formatted as code – jsotola Jul 29 '21 at 01:22

1 Answers1

1

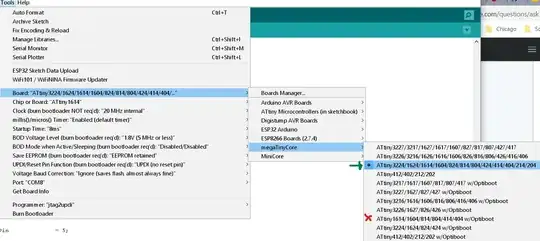

I had the wrong ATTiny1614 selected. Needed to select the non-optiboot option.

enter image description here
