I saw this photo at another interesting question:

enter image description here

There's an open square panel. What is it?

P.S. Any tag suggestions are welcome. All I could think of was "tail".

EDIT: are there any other tags for this kind of thing? The APU tag seems to be a crystal ball because I had no idea what it was at the time.

Community
  • 1
DrZ214
  • 17,711
  • 17
  • 99
  • 207

1 Answers1

33

It is the Auxiliary Power Unit (APU) inlet door.

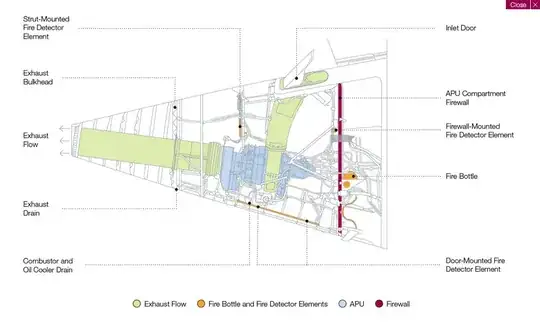

APU inlet

Image from Boeing Aero Magazine

TomMcW
  • 28,459
  • 21
  • 106
  • 227
aeroalias
  • 100,255
  • 5
  • 278
  • 429
  • Next question: why is does the inlet face upwards, where rain can get in? If it opened downwards, they wouldn't have to put a door on it at all. – Level River St Jan 18 '16 at 10:03
  • 5
    @steveverrill I don't think the door is for rain protection but for aerodynamics. Afaik the APU is not used in-flight. So you can cover the inlet with a door because a "hole" in the fuselage would generate drag. – André Stannek Jan 18 '16 at 10:24
  • 2
    it if were facing down, it would be subject to FOD. it probably has an inertial separator not just for rain, but for debris as well. – rbp Jan 18 '16 at 16:36
  • 2
    oh and here i thought the question was asking about the square open panel below the tail number and door... @DrZ214 – Michael Jan 18 '16 at 17:42
  • @steveverrill Rain isn't usually a problem for jet engines. FOD is, though – TomMcW Jan 18 '16 at 18:20
  • @TomMcW Sure I missed the possibility of FOD, but the reason rain isn't usually a problem for jet engines is because they're normally horizontal and have a fairly straight flow path. Undrained water collected in intake of any type of engine while stopped can potentially cause damage on startup, as well as corrosion while shut down. If door was damaged, and there was significant rain while APU was stopped, I'd want to check it before flying on it. It's possible there's a drain line to prevent water collecting in the intake, but I cant see it in the drawing, nor can I see an opening in the photo – Level River St Jan 18 '16 at 18:40
  • 2
    @steveverrill Yeah, it's prob not advisable to let water sit in there while it's not running. I'm assuming the door is normally only open when the apu is in use. So preventing rain ingress may be one reason the door is there. The diagram does show a drain for the exhaust, though. I guess because it can't be closed. – TomMcW Jan 18 '16 at 18:50
  • @Michael oops, i ddnt even notice that tiny one on the underside. I thought the one with the blue stripe was the only open panel in the photo. – DrZ214 Jan 18 '16 at 19:36
