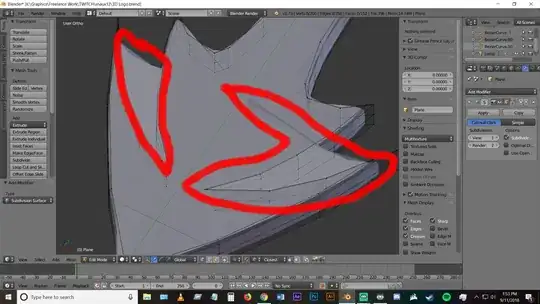

So I'm trying my hand at Blender 3D again, but this issue keeps popping up when I try to use the Subdivision Surface modifier on certain shapes and objects. The following screenshots should illustrate pretty well what I'm referring to: enter image description here

enter image description here

Any help would be greatly appreciated! <3

Seabass
  • 23
  • 2
  • 4
    Generally speaking, ngons and subsurf don't play nice. You probably want to either replace the ngon with quads or avoid using subsurf. – gandalf3 Sep 11 '18 at 23:22
  • Related: https://blender.stackexchange.com/q/89/599 – gandalf3 Sep 12 '18 at 00:50
  • could your share your object? https://blend-exchange.giantcowfilms.com/ – moonboots Sep 12 '18 at 06:44
  • Given the shape of the object I would also recommend using a mirror modifier, a solidify modifier and a subdiv modifier. That way you can control most of the geometry with just a 2d mesh. (Which should consist of quads). – miceterminator Sep 12 '18 at 07:03
  • 2
    There is an easy and dirty solution to use this model albeit with Ngon - select the big face in the middle and inset it with I. Then there will appear an edge loop around the border of the mesh and Ngon will remain in the middle on the flat area. This isn't a solution rather than a workaround in most cases (depending on the purpose of the mesh though) – Mr Zak Sep 12 '18 at 13:36
  • Sub-D's and ngons *really* don't play well together - although there are tricks you can do to avoid the worst artifacts, if you're intending to use this asset for animation, or for game engine work, you really want all clean quads for topology: If necessary, finish up your modeling process with ngons and other junk modeling, then retopologise it. – GerardFalla Sep 12 '18 at 16:56

1 Answers1

0

If you look at the algorithm for generating new vertices and moving the old ones in Catmull-Clark subdivision, you can see that the first step is the creation of a 'Face-Point' at the average position of all the vertices of an existing polygonal face. That point then has a significant influence on the placing of newly-created edge vertices, and usually a less significant influence on the movement of existing vertices.

If you have a very large face, whose Face Point is miles away from the vertices being interpolated, and that face has concave inclusions, so the Face Point lies outside the face, there is nothing to stop the newly-created 'internal' vertices at the Face Points, being placed outside the polygons bounded by the (adjusted) existing vertices.

In the top pair of objects below, the quad dart has been subdivided once. The newly created Face Point vertex, not dividing an existing edge (white) has been placed outside the sickle shape bounded by the other points.

In the second pair, the dart has been cut up by hand, so its components are convex.The newly created vertices after one subdivision are all inside the areas bounded by the existing vertices.

enter image description here

As you can see, with respect to this problem, it doesn't matter that all the faces are quads - they will be after the first generation of subdivision anyway. The rule is: divide your concave faces into convex components - keep the Face Points internal to the edges that will be subdivided...

enter image description here

Robin Betts
  • 76,260
  • 8
  • 77
  • 190
  • Thanks very much for the explanation, that definitely helped me wrap my head around the problem! You guys are all awesome, thanks so much! =D – Seabass Sep 12 '18 at 19:46
