This is the bust part of a onepiece from another model.
The character is also of a different model.
As shown that the character's bust is flat.
I am unable to simply wrap the entire bust unit on the character since the top edge of the bust part in the original model is left unwrap.

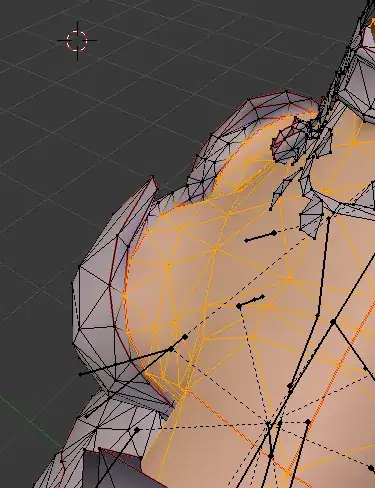

Upperview: Top edge does not wrap the original character's bust

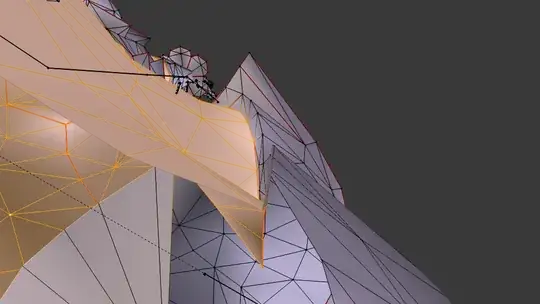

Inner Sideview: Orange part is the upper bust of the original character What steps shall I take to wrap the bust part of the onepiece dress so that it fits the bust of new character while remaining the edges.
Or, is it possible to wrap only a face while the other part deforms accordingly, so that I can add another face inside the bust unit that covers the original character's bust and make only that face to wrap the new character while remaining the structure of the bust piece.

atomicbezierslinger
  • 14,279
  • 28
  • 42
冬馬かずさ
  • 53
  • 1
  • 3
  • See Shrinkwrap Modifier. Consider practicing a few this modifier on simple shapes before complex shapes. – atomicbezierslinger Jul 31 '17 at 16:41
  • Using shrinkwrap modifier on the entire unit makes the top edge attach as well. I am trying to only wrap part of the bust unit while have the top edge remain unattached. – 冬馬かずさ Jul 31 '17 at 16:49
  • Here is a video tutorial for a small start. You should seek out a more technical video by searching .... https://www.youtube.com/watch?v=w2NwJsXBA2A – atomicbezierslinger Jul 31 '17 at 16:50
  • Shrink wrap works with weight vertex groups. See that as well. I would spend an hour to see that concept. Weight painting. – atomicbezierslinger Jul 31 '17 at 16:51
  • So does that mean I shall split the model into different vertex groups and apply the shrinkwrap modifier? I saw a different post before posting showing how to wrap a belt with different vertex groups through shrinkwrap modifier and lattice modifier, but I am quite lost on how should I split my mesh so that it accomplish my goal. – 冬馬かずさ Jul 31 '17 at 16:59
  • Suggestion. Recreate the answer below as an example. Then submit a new question about splitting the model. The new question may disappear. A new one will appear. – atomicbezierslinger Jul 31 '17 at 18:26
  • Searching and finding more info here at the famous video website or here at BSE will teach you about more settings of ShrinkWrap. – atomicbezierslinger Aug 01 '17 at 00:26
  • Many times people show models made from quads. I am suprised I do not see more quads in you model. Was your model imported? – atomicbezierslinger Aug 01 '17 at 00:28
  • Yeah it is imported. I got into blender just a few day ago because of an interest of modeling game character. – 冬馬かずさ Aug 01 '17 at 04:06

1 Answers1

3

Shrink Wrap with Vertex Group Weights

By using vertex groups modified in weight paint you can exert more control.

enter image description here

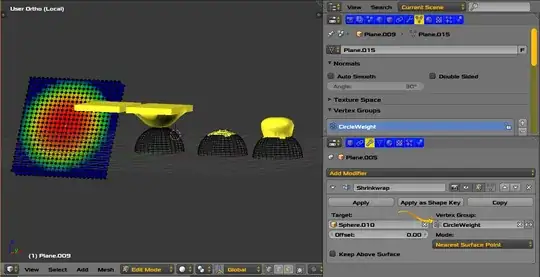

A the very flat square box begin as a cube Mesh. Subdivided as seen, High Vertex Density. I will call it a box. Left to Right parts of the image -->

  • For simple models you can consider texture painting. I tend to think you do not want this.

  • On the left the box is showing weights in edit. Painting occurred in Weight Paint Mode. You can see vertex group names. A Mesh can have many vertex groups. All hidden vertices are zero weight.

  • Next the box with NO modifiers

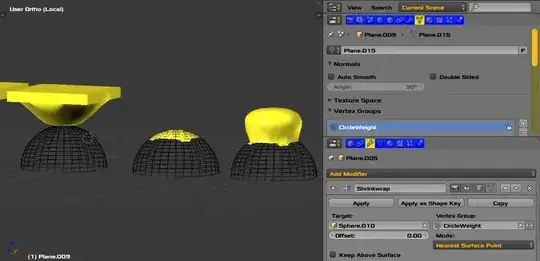

  • Next the box with Shrink Wrap Modifier ..and vertex group specified ... Note the red weights allow the vertices to move the most. The top of the box is stable and does not move, this is the control weight paint efforts allow. Lets call this [Context 1]
  • Next the box with Shrink Wrap Modifier ... No Vertex group .. it collapses to where many faces are close to each other .. lack of control
  • Next same as in [Context 1] but the inverse of the group has been selected. Only the red paint area stays in it original place. Weight of Vertex X is now (1 - original weight)
  • Consider adding a second or more Shrink Wrap modifier your waist area.

Notes

  • A flexible fabric in daily life conforms to a body. Stretch Fabric even more.
  • A bullet proof vest and bomb squad disposal suit might conform very little.

  • You must use your judgement. Breaking a model in to flexible and inflexible parts should be considered one of your tools, along with others.

  • Practice simple cases of Weight Paint and ShrinkWrap. Improve the example you see here.

  • Weight Paint mastery is an essential skill for Shrinkwrap.
  • Once you have control over the vertex group weights you can make more informed decisions.
  • Then see more advanced tutorials.
  • This is just a quick highlight. This topic requires further research.

enter image description here
