I am working on a terrain and want to blend two or three textures. Rocky texture for the top of the mountains and then more or a desert texture for the bottom land. Someone asked this similar question sometime back.

Blending two textures together

While someone answered it was not really helpful for me. I get around in the nodes editor just enough to be dangerous. I know I need some mix nodes and texture generator but and maybe a Texture coordinator but not sure how to hook everything up. Any Ideas?

Allen
  • 119
  • 3
  • 13
  • maybe related: https://blender.stackexchange.com/questions/67142/cycles-material-with-color-based-on-height-and-backside-in-different-colors/67145#67145 –  May 28 '18 at 06:54

1 Answers1

0

Use a gradient texture and a color ramp to control the mix between two shaders.

The placement of the gradient can be controlled with a mapping node.

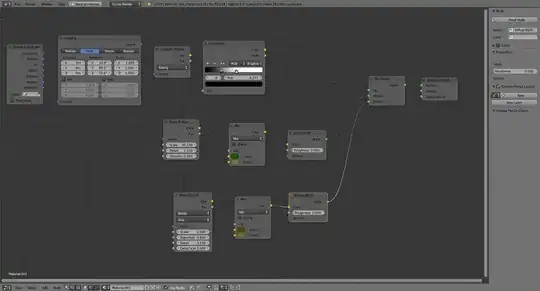

enter image description here

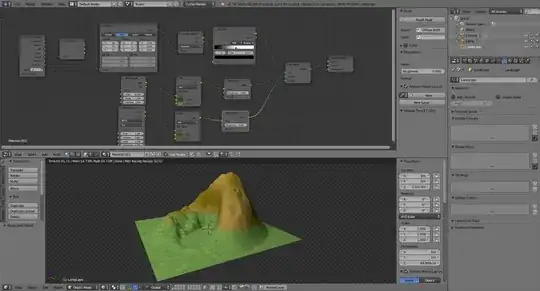

enter image description here

A variation on the same idea is to use a Separate XYZ node and use only the information on the Z coordinates for the gradient texture and color ramp.

Playing with scale or location will allow you to control the transition between different shaders.

enter image description here

  • This is very helpful as it is helping me to understand how the nodes work. Can something like this be done using image textures? – Allen May 28 '18 at 11:29
