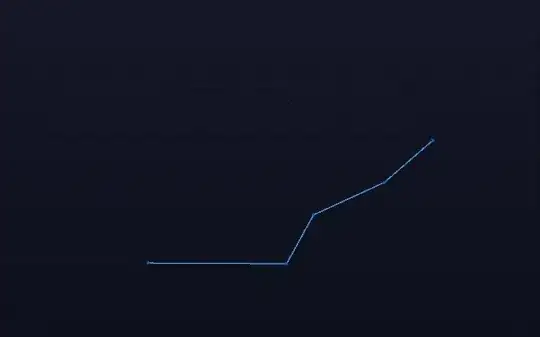

I want to extrude a boundary edge such that angles between any given newly generated perpendicular edge and the edges on either side are equal. That is, I want to do this:

enter image description here

The gif was accomplished by first extruding in the Z axis and then fattening with ⎇ AltS:

enter image description here

Is there a way to do this without the intermediate step? When I do ⎇ AltS with just a boundary edge I get this odd behavior (seems the normals are just set arbitrarily?)

enter image description here

gandalf3
  • 157,169
  • 58
  • 601
  • 1,133
  • 1
    I may have got your meaning wrong .. but the 'Offset Edges' Add-On > Extrude preserves angles as you describe .. each new edge from a vertex bisects the angle between the edges which previously met at that vertex. However, unlike your illustration, not all the generated bisectors are the same length. Is that important? – Robin Betts Jul 09 '18 at 08:08
  • 1
    Would call that a miter extrude Somewhat related particularly the ammended script here Which use the miter points via method outlined here mehods here to stroke edge mesh in XY plane. – batFINGER Jul 09 '18 at 09:18
  • @RobinBetts I would actually prefer that the new boundary edges be parallel to the old ones, as that addon does. So that would be perfect, but for the lack of fast tweakability. Though an edge slide can tweak it once the geometry exists, so I'll accept it :) – gandalf3 Jul 09 '18 at 21:19
  • @batFINGER That does seem rather like what I'm after, but it seems that at least the OSM version does some kind of beveling as well? – gandalf3 Jul 09 '18 at 21:20
  • Second creates new mesh without centre line., and miters bends ( has some edge cases to fix or it twists. ) Believe what you are after is: Project edges onto view plane, calculate miter vectors and extrude... what do you think? – batFINGER Jul 10 '18 at 13:21
  • @batFINGER For a single stand-along edge as shown in my gif that sounds about right, but when the edge is next to some faces I think it would make the most sense to extrude in the plane said neighboring faces (as the addon mentioned by Robin Betts does) – gandalf3 Jul 11 '18 at 06:45
