I am designing a first aid kit in blender, and I have a foam insert that has booleans/holes in it for items inside the kit so it fits snugly. I have made 6 out of 8 boolean operations successfully, but 2 of them, after applying boolean modifier, do not create a boolean of any kind. But when I go to edit mode it shows on the topology the outline of my boolean. This is pretty weird,has never happened to be before.

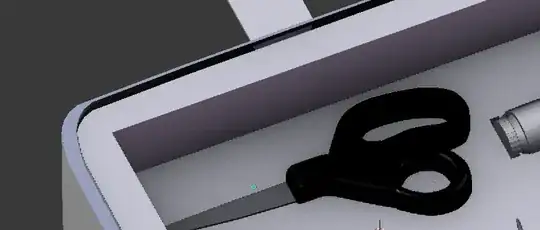

Before boolean:enter image description here

After boolean in edit mode:enter image description here

The knife tool does work, but it does not yield the result i want and is not as smooth.

cgperfect
  • 705
  • 1
  • 14
  • 33
  • Have you already tried all the possible solution shown here: https://blender.stackexchange.com/a/34787/15140? – Carlo Jul 23 '18 at 22:04
  • @Carlo yes I tried removing doubles and fixing normals, again has not worked. On the scissors, there is intersecting geometry, which i fixed but still didnt fix the boolean problem. – cgperfect Jul 23 '18 at 22:22
  • 1
    What about the non-manifold geometry and overlapping faces? Your mesh seems to be composed by two different disconnected objects: if this is the case, you are not subtracting a properly defined volume. – Carlo Jul 23 '18 at 22:25
  • 1
    you are correct, there were two objects i needed to join together, so i simply selected the vertices and hit alt+m>last for each one until it was closed. Subdivision surface wouldn't work and gave me a seam where the verts i connected were at. – cgperfect Jul 23 '18 at 22:33
