Blender artifacts when zooming out

Question

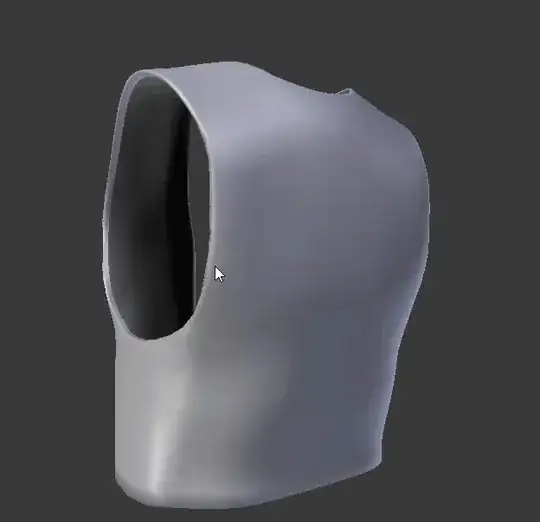

I facing the problem that I get artifacts around areas where polygons are close together when zooming out: this is also visible in rendered shading. It seems like some of the polygons disappear:

This does happen with polygons from the same mesh and polygons of other meshes as long as theyre close together. I checked the normals which are fine. It is fine when I frehsly reopend blender and open the scene but after editing the mesh just a little the artefacts reoccour. I already tried making a completely new scene and importing the mesh but the artefacts also happen then.

Have you checked the views near and far plane? Does this occur when rendering as well? Could it be z-fighting (maybe caused by a solidify modifier). — Leander, Aug 11 '18 at 20:32
@WhatAMesh here is the .blend https://drive.google.com/open?id=1P3TJo42edrd2tv_zHiU1cLWnWzmQ69ne — Chris, Aug 11 '18 at 20:41
@Leander it happens in rendered shading but not when rendering, — Chris, Aug 11 '18 at 20:42

score 2 · Answer 1 · edited May 13 '21 at 16:53

2

It can be the Clipping Distance of the Scene view and the camera, try to set a higher number, and those weird clipping artifacts will disappear.

edited May 13 '21 at 16:53

Duarte Farrajota Ramos

59,425
39
130
187

answered May 13 '21 at 15:38

Mold

21
2

score 1 · Accepted Answer · answered Aug 11 '18 at 20:50

1

Your mesh is fine, but it is way too big in blender dimensions, you should scale it down quite a bit.

answered Aug 11 '18 at 20:50

WhatAMesh

1,169
1
10
25

Oh I see, as I'm beginner I used a premade generic human 3D-model to model this mesh around and it apparently had pretty big dimensions. Thank you I will keep and an eye out in the future to not go too big in dimensions – Chris Aug 11 '18 at 20:55
Did it actually work for you? – WhatAMesh Aug 11 '18 at 20:56
yes no more artifacts in the 3D view so far – Chris Aug 11 '18 at 20:59
@Chris Ok, great! – WhatAMesh Aug 11 '18 at 20:59
