So I'm trying to make a portal effect for an animation, and unfortunately the only way i know of for doing this effect is by using layers and the compositor in 2.79, which were replaced with the collection system in 2.8: compositing node setup of two layers

Is there a way of creating an effect similar to this with EEVEE's render engine? result of the "portal effect"

Leander
  • 26,725
  • 2
  • 44
  • 105
Marux
  • 222
  • 2
  • 17

1 Answers1

6

View and Render Layers are working similar to 2.79 but sadly EEVEE can't use Material/Object Index Pass. So you can't make a portal using this method. Read more here and watch video from the links: Blender 2.8 - Object index pass in Eevee

How to replicate it using different method

final

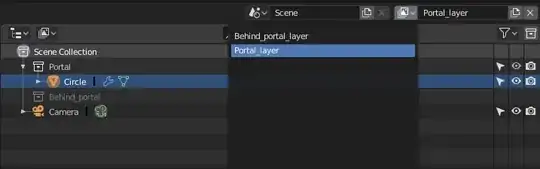

  1. I've created two Collections - Portal and Behind_portal and also two View Layers accordingly.

    enter image description here

  2. To exclude Collection from View Layer - select it and press E or RMB > View Layer > Set Exclude.

  3. In Compositing I've used Color Key to "remove" color of Holdout shader assigned to portal. I've also scaled a bit result and blurred it, as Color Key is not 100% precise.

    comp
