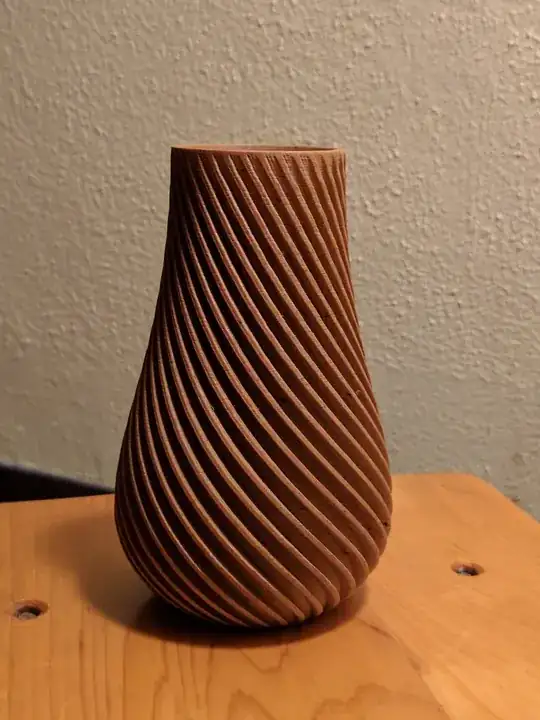

I'm looking to build a simple vase for 3d printing and I'm keen to understand how I can do this.

enter image description here

I've tried the screw modifier, however it appears to be lacking the right level of detail to work properly (I've create a simple shape and then applied several subdivides to it in order to increase the mesh density)

There's bound to be a smart way to achieve this, appreciate any pointers/tips!

Duarte Farrajota Ramos
  • 59,425
  • 39
  • 130
  • 187
Alphatester77
  • 131
  • 2

1 Answers1

5

Tissue addon

You can start by using the Screw modifier on a Curve profile in order to build the main shape.

enter image description here

Then build a "component" for the Tissue add-on made of 3 ridges like the one shown below:

enter image description here

Run the Tessellate operator chossing the component ad the surface. Activate the merge option.

enter image description here
