The attached set up works fine, but visually it's a mess, and I can't help wondering if there's a much simpler way of expressing this idea...

enter image description here

Objects A, B, C, and D are all clones of rotated cylinder M. A and C are slightly scaled down versions of M, and B and D are slightly scaled up.

Further, A and B share a fixed Y-axis, and C and D share a variable Y-axis. A and D share a common X-axis, as do B and C. Theses axes are equidistant from x=0. Yep, they're the vertices of an imaginary rectangle, with side A-B centred on 0,0.

This is what my set up for this presently looks like:

enter image description here

Can this be simplified?

Strawberry
  • 329
  • 2
  • 15
  • For me, this doesn't look that complicated for a node setup. It could use a few "reroute" nodes but given what you are trying to achieve I would say it is pretty dense already. I don't know much about sverchok but maybe you can add a "group" similar to shader nodes for the 4 "Move" nodes on the right since they all do the same things with different parameters ? – Gorgious Jan 27 '20 at 16:39
  • @Gorgious "I don't know much about sverchok" - you and me both!!... Thanks – Strawberry Jan 27 '20 at 16:54
  • 1
    May be relevant https://blender.stackexchange.com/questions/29226/how-to-group-nodes-in-sverchok – Gorgious Jan 28 '20 at 07:30
  • this isn't massively complicated. i'm afraid it's partially my fault for not providing a way to colour individual objects inside a single ViewerDraw. Otherwise you would be able to use one VD and pass it the matrices/colours. Sometimes complex ideas can be described in few nodes, other times simple ideas require more nodes than seems right, and there's a whole gradient inbetween. I may still add a color socket to VD. – zeffii Jan 31 '20 at 14:12
  • @zeffii Did you mean to comment on this thread? The colours aren't the problem, and this tool of yours is brilliant, so I can't see that any of it is YOUR fault!!! – Strawberry Jan 31 '20 at 14:24
  • yes, that comment is totally intentional. but if the cylinders don't need to be coloured (useful when you're starting out... but lateron less useful), then kabu offers a nice approach below – zeffii Jan 31 '20 at 14:38

3 Answers3

3

Inspired by some examples elsewhere, here's my best attempt so far, but it doesn't (yet?) solve the problem of setting A and C to a different scale from B and D...enter image description here

...but as far as it goes, it looks a bit tidier.

EDIT:

Right, so, with Kabu's help, the inclusion of a 'simple?' List Input has solved the next part of the puzzle. Very neat - although Kabu has suggested that there is room for further optimisation as consequence of redundancy!!

enter image description here(https://blend-exchange.giantcowfilms.com/b/JoWGSlO7/)

Strawberry
  • 329
  • 2
  • 15
3

You were almost there.

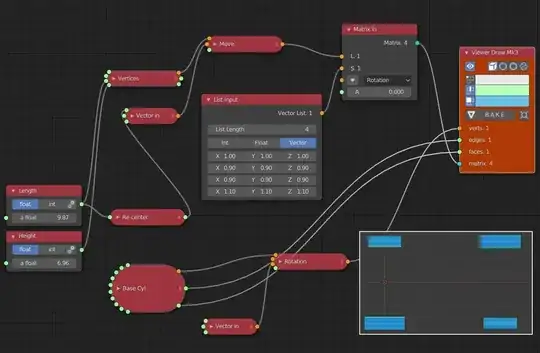

enter image description here
