Hello Blender Stack Exchange,

I am trying to fill a face between 4 surfaces. Two are straight edges and two are a curved line made up of short vertices that came from a SketchUp export.

The problem: I select the vertices on the top and bottom and fill the hole. It creates a strange face that ruins the curve. I would prefer it create some sort of complex curve. I want it to be smooth.

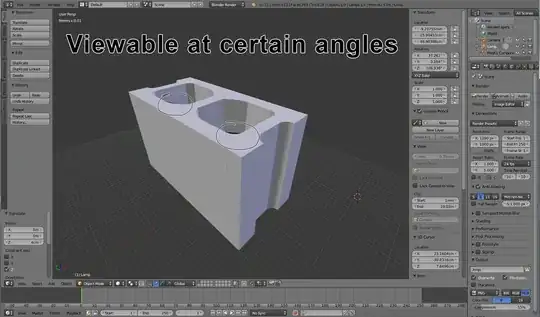

Images attached to better explain.

enter image description here enter image description here enter image description here enter image description here enter image description here

835
  • 717
  • 1
  • 11
  • 20

1 Answers1

8

To deal with curves like that you need to use the Bridge Edge Loops tool.

If you use the fill tool (F) blender creates a very ugly Ngon on connecting all of the vertices like this: enter image description here

Using bridge edge loop tool will give you the proper curve: enter image description here

  • This is the solution! Thank you very much.

    http://i.imgur.com/nrShTA7.jpg

    Now if I can just figure out a way to smooth out the curve near the inner part...

     – 835 Oct 25 '14 at 21:13
  • @Peter You can ask that as a new question. –  Oct 25 '14 at 21:16
