I'm trying to achieve more or less this kind of twist on a model, but I want to do it procedurally rather than by hand. How would I go about this?

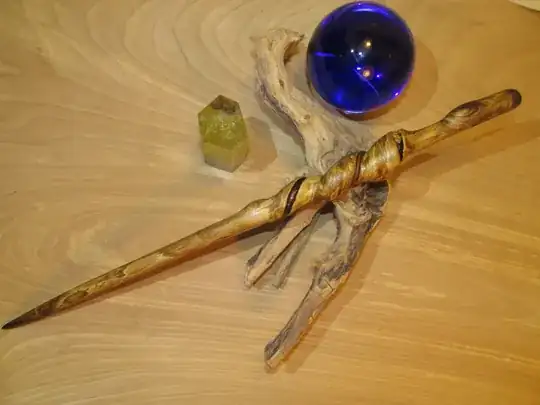

Picture for reference:
Thank you in advance!
Asked
Active
Viewed 110 times
0
-
1Hello :). What have you tried so far? Screw modifier seems well suited for this. – jachym michal Jul 08 '20 at 11:17
-
https://blender.stackexchange.com/questions/56396 https://blender.stackexchange.com/questions/65633 – Duarte Farrajota Ramos Jul 08 '20 at 12:16
-
1@JachymMichal I read somewhere on the forum that Simple deform modifier could be used. But I'm not getting the results I need at all :/ – spockerrs Jul 09 '20 at 14:36
-
@DuarteFarrajotaRamos This is an example on a plane not on a cylinder... My geometry breaks when I try this way. – spockerrs Jul 09 '20 at 14:37
1 Answers
2
As you suggested, you can use Simple Deform modifier for this
- One modifier set to Twist for the spiral
- Angle around 1080° for three twists, and use limits to move it up/down
- Second modifier set to Taper, and adjust to your needs.
jachym michal
- 31,744
- 5
- 55
- 115
-
Hi thanks! Yeah I'm able to do this, but I was wondering if I could apply this on the model that I already have, which say is not in such a simple shape and it would be a wast to just remodel it all again... Could I apply this simple deform only on certain vertices in a way that would end up looking like this? – spockerrs Jul 09 '20 at 17:04
-
1Hey :). Yes, you can limit the influence on a vertex group. But hard to say how it's gonna turn out without seeing your mesh :). – jachym michal Jul 09 '20 at 17:09
