How to keep the gradient when joining objects?

Question

On the left, the petals are separate (linked) objects.
On the right, they're joined into one object - but the gradient type changed.

How to keep the same gradient type when I join the petals together into a single object?

You can use a radial gradient, see here: https://blender.stackexchange.com/questions/42304/radial-colorramp-gradient-texture?noredirect=1 — moonboots, Nov 07 '20 at 21:03

jachym michal · Accepted Answer · 2020-11-08T09:37:04.597

2

^{(Edited using the provided file)}

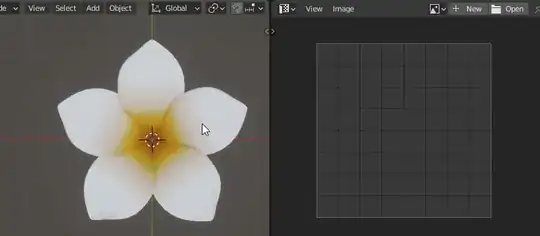

To keep the gradient when joining the petals, you can use UV coordinates.
Then just project the UV map from top and join.

(To get the same UV map, just select the petal and UV > Project from view)

edited Nov 08 '20 at 09:37

answered Nov 07 '20 at 22:00

jachym michal

31,744
5
55
115

Thanks for the reply. But I'm not getting the similar result to my first setup. You solution is similar to the picture below. (see how the gradient align on each object)

Screenshot

Source file
– xcession Nov 08 '20 at 07:10
Well, you're using Z coordinates to drive the gradient. I suggested a UV map :). – jachym michal Nov 08 '20 at 07:11
Well, I already tried that. but treating them as one single object is not getting the result I want. (see my annotation in screenshot above) – xcession Nov 08 '20 at 07:17
Here is the result using UV --- Screenshot – xcession Nov 08 '20 at 07:22
Hey :). Could you please add an image of your desired final result? Maybe I misunderstood :). – jachym michal Nov 08 '20 at 07:24
The left one in all above screenshots. Also by using UV it got a bit ugly on the bottom. --- Screenshot – xcession Nov 08 '20 at 08:11
Sorry mate, I don't understand what you don't like :). Project UV map for one petal an then join - the uv map is the same for each petal. https://imgur.com/a/odtS2Vr – jachym michal Nov 08 '20 at 08:32
Sorry, XD I'm just new to new to this "node" thing, I'm still learning. My result using UV node like you said, Is not same as your screenshot.
Maybe I'm just done something wrong?
– xcession Nov 08 '20 at 09:24
Hey :). I also modified the UV. The original UV map in your file didn't work that well, so I changed it (projected from top) – jachym michal Nov 08 '20 at 09:27
Oh, got it. XD ... I have to do the "project from view" to get same result as your... Thanks a lot for your help. – xcession Nov 08 '20 at 09:28
Yes :). Okay, if you get stuck anywhere, feel free to post a new question. Good luck. – jachym michal Nov 08 '20 at 09:31
