I'm very new to Blender and trying to use it to design cut patterns for a tent I plan to sew. In tent design, you need to add catenary curves to edges so they tension the panels nicely. For instance, you can see the curvature where the panels join in this image

tent with catenary curves

In modeling terms, I need to create a 3-point arc edge. I'd like to specify the deflection at the midpoint to accomplish this

desired modeling result

I have a feeling the solution is something related to beveling. However, the answer here does not work if I add a vertex to the middle of my edge - the bevel just adds additional vertices without introducing any curvature. Another answer shows beveling for faces, but I need to bevel the edge connecting two faces.

Addison Klinke
  • 171
  • 2

3 Answers3

10

I guess somebody has to suggest a cloth simulation, although I'm not sure it will meet your specifications. The curves resulting from pinning and tension don't appear to be catenaries, until the tension is wound up to an unrealistic level.

The topology is as shown, with the selected vertex-groups pinned in the simulation:

enter image description here

The edges between planes have also been given some damping in tension.. there may be more accurate settings, depending on the real-life constraints. The cloth settings are a slight variation on the 'Rubber' preset, supplied in the .blend as 'Tent', with a Shape > Shrink Factor providing the forces.

The result after running the simulation for ~75 frames:

enter image description here

Robin Betts
  • 76,260
  • 8
  • 77
  • 190
  • 1
    Looked up solving for sag and found link (added to answer) which would require some numerical method to solve. Let the cloth sim work it out. (aside) Wonder do modified meshes (eg mirror above) perform better in cloth sim? Came across draw a catenary by mapping a parabolas focus point as parabola is rotated about a line. (Bernoulli IIRC) Did you forget the capital D?. – batFINGER Dec 18 '20 at 10:41
  • 1
    @batFINGER Hmm! Mirror? Dunno! I don't think cloth deals with tension across mirror-plane, if mirror is below, and if mirror is above, then has to simulate the lot anyway? Catenaries.. does a 2D stretch follow a catenary, anyway? is it not more like a minimal surface .. which may be the same thing.. Interested in how you would flatten the surface after simulation for use as a cutting-pattern. .. Capital D? Still decyphering that remark :) – Robin Betts Dec 18 '20 at 11:05
  • Begs the question re elastic material. Came up here as well https://mathworld.wolfram.com/Catenary.html D re hair comment, keep small d for the hoi polloi. – batFINGER Dec 18 '20 at 11:44
6

Add curve extra objects.

Another curve based option is to use the the catenary curve provided. It has an option to "hang" a catenary curve between two objects. Powerlines, cables, etc

Enable the add curve extra objects addon. In demo below have two cubes at x = +/- 4. With them both selected Add Curve > Knots > Catenary

enter image description here

The "dangle" of the curve is defined using the parameter a as described in

Catenary enter image description here

To calculate the sag given seam length and end points is demonstrated here

https://physics.stackexchange.com/questions/481379/catenary-equations-solving-for-sag-given-distance-and-cable-length

Somewhat related.

How can I create a mathematically correct arc/circular segment?

batFINGER
  • 84,216
  • 10
  • 108
  • 233
4

Use curves.

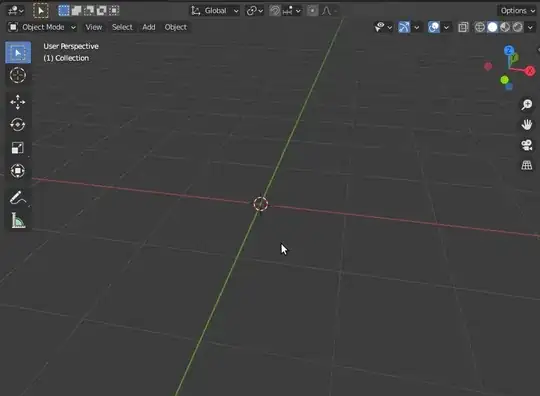

Start with a bezier curve.

Scale each control point to zero (S+0)

Subdivide the curve. A new control point is created. Moving the newly created control point should do what you want. You can specify precisely where to place it by using the numeric controls (Press N to enable the control region)

enter image description here

Or try using Nurf Surfaces.

enter image description here

susu
  • 14,002
  • 3
  • 25
  • 48
