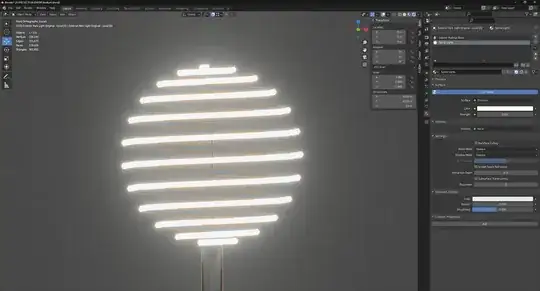

I have create this spiral LED lamp. enter image description here

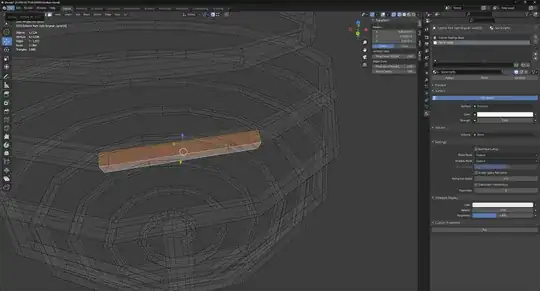

The cylindrical part of spiral has six faces. enter image description here

Four of them (back) are the non-transparent part and the rest two (front) supposed to be the plastic cap of the LED strip. enter image description here

At those front faces I have add a material with an emission surface so to look like lit LED strip. enter image description here

What I want to do is to make all those front faces to shed light to my scene. But not just to look glowed like first image. Is that possible?

Simos Sigma
  • 413
  • 3
  • 11

1 Answers1

2

Yes it is possible, you just assign a material with emission shader to the faces that you want to emit light and they will(in Cycles render). enter image description here

Martynas Žiemys
  • 24,274
  • 2
  • 34
  • 77
  • I have already done this at last step of my question and it just glow, doesn't give light to scene. – Simos Sigma Feb 09 '21 at 17:26
  • 2
    Hello @Simon :). You're using Eevee, which has considerable limits on mesh lights. You need to bake indirect light for them to light the environment (or use Cycles rendering engine). – jachym michal Feb 09 '21 at 19:16
  • Also, what do you expect the light to illuminate in your example? There is nothing around that can receive the light and it faces away from other parts of the object... – Martynas Žiemys Feb 09 '21 at 21:32
  • Hello @JachymMichal :). I know about Eevee limits, I just wanted to know if I can make an object, a face etc, to shed light like blender lights do!!! – Simos Sigma Feb 10 '21 at 09:56
  • @MartynasŽiemys in my example nothing, because what you see it's just isolated objects!!! :) – Simos Sigma Feb 10 '21 at 09:58
