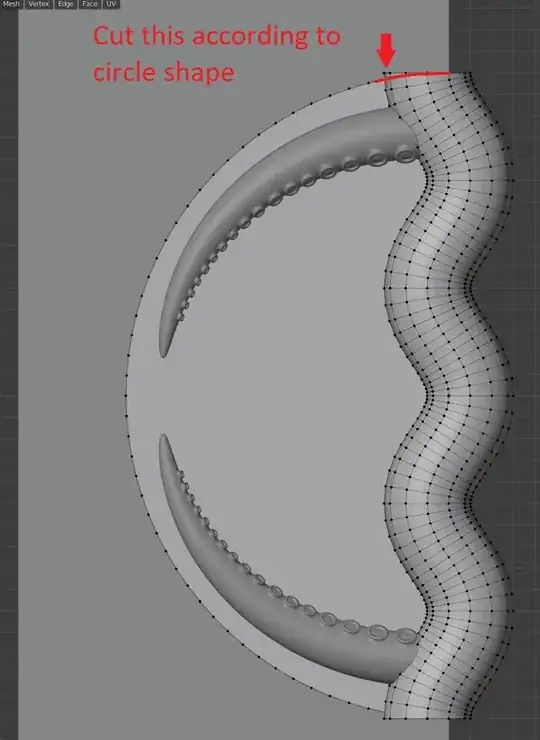

I want to cut off the bezier curve mesh so it has the same shape as the circle on which it is placed but i can't figure out what tool to use. I tried the boolean modifier but this didn't work. I need to keep vertices on top so i can fill the face later.

Any help is much appreciated.

enter image description here

Joris Beuls
  • 11
  • 1

1 Answers1

0

I’ve run into this type of problem before. I recommend extruding the circular background, and then using the resulting edge-to-faces to cut the wave tube. You may have to move the circular background a bit to make it offset, so it doesn’t just cut half the tube.

Use Boolean or the Boolean modifier for cutting. Selecting the mesh to be cut (I think, maybe it’s the other way around and you select only the mesh that’s DOING the cutting)
