How to scale the tip of a curve?

Question

I am trying to model a screw, but I need the tip to end in a small, fine point (almost Scale 0), how can I achieve this?

moonboots · Accepted Answer · 2022-08-08T19:46:01.940

2

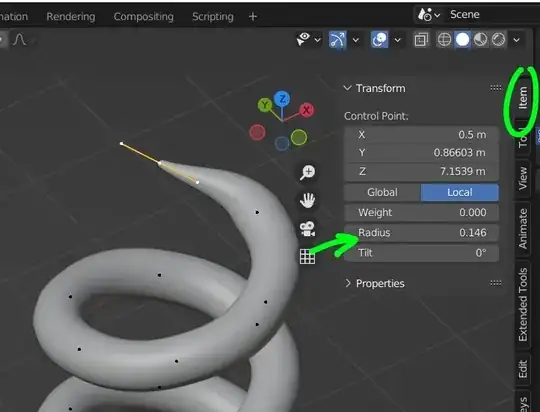

In Edit mode select the vertex and press AltS, you can also type the radius in the N panel > Item > Transform > Radius, or right click > Set Curve Radius:

edited Aug 08 '22 at 19:46

answered Aug 08 '22 at 19:36

moonboots

155,560
7
105
171

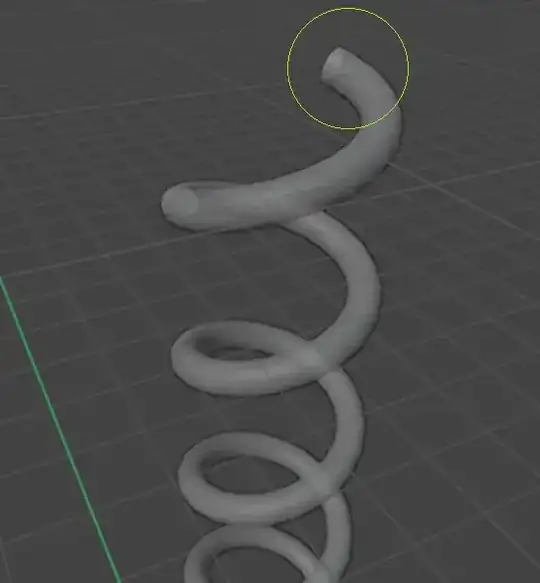

Thank you very much! that solved a lot! is there any way to make the tip 'round'? – Sebastian Inostroza Aug 08 '22 at 20:43
no, unless you create several vertices and reduce their radius so that it looks round, but if you convert to mesh you'll be able to round the tip much more easily – moonboots Aug 08 '22 at 21:11
