How can I make this texture with nodes, or some other technique. It is an eye of an insect called Weevil. I saw it on the web and was curious how this could be done.

enter image description here

quellenform
  • 35,177
  • 10
  • 50
  • 133
blender breath
  • 3,737
  • 1
  • 10
  • 40
  • 1
    Maybe it is similar to this: https://blender.stackexchange.com/questions/272870/snake-scales-align-to-normal-in-geometry-nodes and this: https://www.youtube.com/watch?v=fmDv81dMQ6c – Blender Lake Aug 06 '23 at 05:40

1 Answers1

4

It might save you geometry to do this with a shader. This one depends on the hexagonal grid group described here:

enter image description here

By using it in a shader-tree like this, in UV Space:

enter image description here

  • You can organically warp the hexagonal grid by shifting the UVs in the map
  • Alter the overall scale in U and V
  • Change the profile of the cells with the Float Curve
  • Texture-paint smoothness, per-cell, into the HexMask image, around the edges of the eye, or elsewhere, for effect.

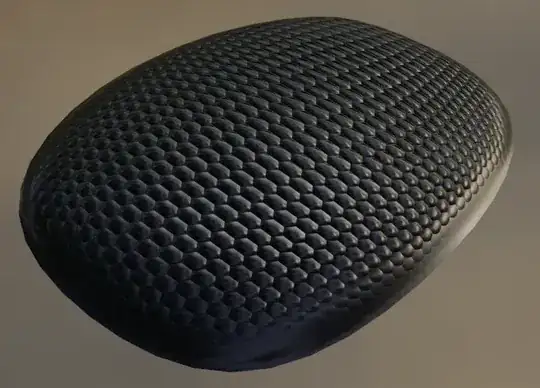

.. for some variation of this:

enter image description here
