My spaceship with too many edges

Have lots of edges in my starship mesh, as shown in the red box.
How could I reduce them and make one rounded face out of it?

A Wild RolandiXor Has Appeared
  • 11,305
  • 17
  • 52
  • 83
armin malbertz
  • 41
  • 1
  • 4
  • 5
    You might be better off deleting the messed up section and re-extruding. Use Alt+M to merge selected vertices. – J Sargent Jul 05 '15 at 17:29
  • You could try to unsubdivide with Ctrl+E – Kesha Wilson Jul 06 '15 at 01:51
  • 2
    You have a ton of 0-area faces along the edge where you added more geometry. I agree with Novice, you are probably better off re-extruding. – PGmath Jul 06 '15 at 02:23
  • One more thing to try (if deletion isn't the best) is to select such area and use W > Smooth tool (also in the T panel). Faces with 0 area will reveal themselves because of smoothing, and others with bad topology will become better (quite a bit sometimes) – Mr Zak Oct 06 '15 at 17:00
  • You might be looking for the Dissolve Edges operator, on the x menu. – Mutant Bob Jul 08 '15 at 14:16

2 Answers2

1

Just as Tainin said it is not possible to make a curved/bent/folded surface without joining two or more vertices with an edge. However you can make a low Poly model and use smooth shading (in tools menu) to give a more curved shade effect. Or perhaps the normal maps might help depending upon the purpose of your 'Ship'.

TheIronLad
  • 29
  • 4
-1

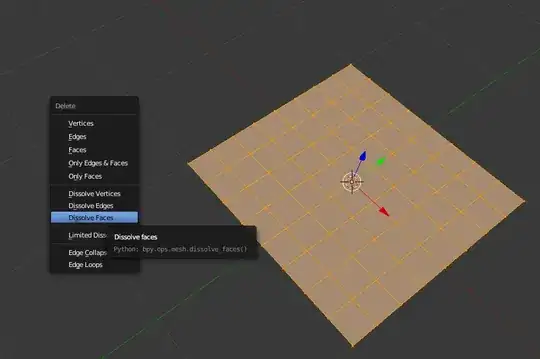

i don't think it is possible to have a curved face without the extra edges. more vertices and edges add more resolution/detail to the model. you could try selecting the faces, pressing x and selecting dissolve faces.enter image description here

enter image description here

Tainin
  • 44
  • 7
