I have a triangular space I want to fill with Grid Fill. The two long sides have each 33 vertices. So connecting them should give the vertical edges of the grid. The short side (on the left) has seven vertices. There should be 7 horizontal grid edges radiating to these vertices from the triangle point. How can I make Grid Fill do this?

Steven
  • 2,010
  • 8
  • 23
  • 38

1 Answers1

10

Create a edgeloop on the other side

Starting from a similar situation

enter image description here

Just model the last face picking the last three vertices and press F.

Then subdivide the internal edge a with the same nuber of cuts of the vertices on the opposite side.

enter image description here

Now you can run the Grid Fill command

enter image description here

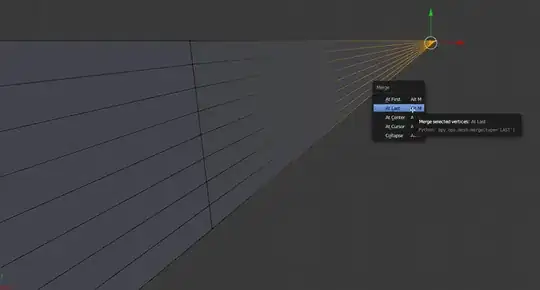

Note: the accuracy of the interpolation on the triangular tip depends on the size of the face, but nothing prevents you to subdivide the edges and make a tiny temporary face that at the end will be collapsed in one point.

enter image description here

Carlo
  • 24,826
  • 2
  • 49
  • 92
  • 1
    This solution is not (mathematically) perfect, but hey, it'll do. Goes to show you have to be creative in Blender. Thx a lot! – Steven Dec 13 '15 at 18:19
