How can I create a water material in Cycles?

Question

I'm creating a scene with large amounts of water that will be readily visible, containing refraction and at various angles. The scene is an indoor long-course swimming pool, about 50 meters, all of which would be seen by a camera above 5 meters above the water's surface. This is being fluid-sim'd, but there are no quickly-moving objects or people, so any water movement is slower and in bulk. The "remove bubbles" option is enabled.

I've tried using a Mix Shader of Refraction BSDF and Reflection BSDF with the factor coming from a Fresnel node, but the results appear either too glossy or too transparent and overly colored. How can I make the water appear realistic? Changes to shaders (refraction to glass)? Or is tweaking colors sufficient?

This is a good question, but a bit subjective ("What is realistic"). Can you make it a bit narrower in scope/more specific? — A Wild RolandiXor Has Appeared, May 23 '13 at 03:02
@RolandiXor I gave specific details on the scene I am creating and what I am trying to achieve. Would this be sufficient now? — nanofarad, May 24 '13 at 01:31

score 27 · Accepted Answer · edited May 09 '20 at 16:15

It is very important to add some small scale displacement to the water surface. This small scale detail is present even in closed spaces due to minor drafts of air, especially in large pools of water. My personal experience is that for best results you can use a combination of animated voronoi textures, like perlin noise does.

This small detail makes it possible to have areas of water that are slightly more refractive or reflective than others. To separate the refraction and reflection parts, you use a standard fresnel factor connected to a mix shader node.

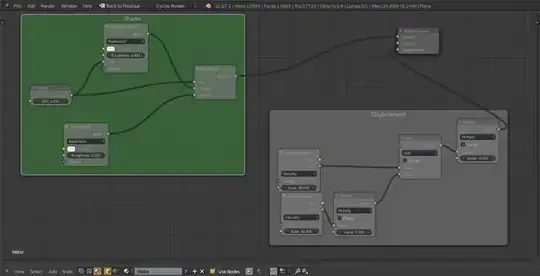

This is my example shader:

(play with index of refraction to achieve a different ratio of refraction to reflection depending on the angle of viewing)

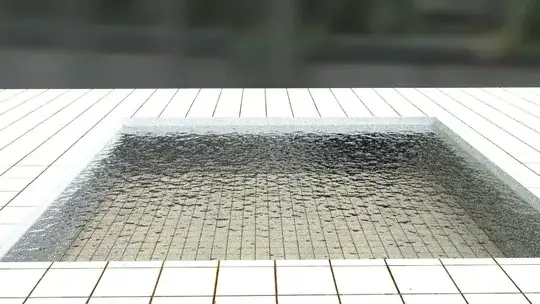

And this is the resulting water:

Of course on indoor scenes you will need many samples or clever lighting to avoid too many fireflies.

Could you provide a blend-file pls? I fail to reproduce your example in blender 2.75a. The water is black and the stuff which is behind the water doesn't shine through. Thanks! — Hamburml, Aug 05 '15 at 19:02
Hey, just to inform you that the pictures used in this answer are not visible. — softyoda yoann, Jun 15 '16 at 14:11

score 23 · Answer 2 · edited Jun 13 '13 at 13:44

23

enter image description here

I've found that using a simple glass glass node works. Also it would help to mix in a refraction node and set the IOR to 1.333, which is the IOR of water. If you want foam use a voronoi crackle texture node and invert the alpha so that the "crackles" give the reflection as white and it looks foamy. You will have to tweak the setting to get it looking the way you want it. The look of your water also depends on your lighting. Always Model, then Light, then create your materials and texture, and finally post processing.

edited Jun 13 '13 at 13:44

iKlsR

43,379
12
156
189

answered Jun 09 '13 at 21:48

Owen Patterson

3,257
7
21
28

Ah, the voronoi does help quite a bit. I multiplied it with something a bit grainy to help as well. – nanofarad Jun 09 '13 at 22:33

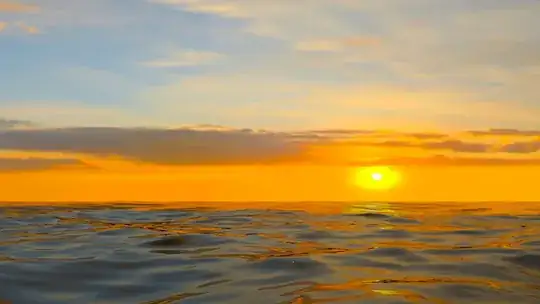

this was my result – Owen Patterson Jun 09 '13 at 22:52
Ah, beautiful. Could you include the .blend file as well? – nanofarad Jun 09 '13 at 22:52
No I did this on my old computer and I was able to save the image, but not the .blend when it crashed. I would have if I had it. Sorry. – Owen Patterson Jun 13 '13 at 11:52
Ah, OK. No worries. – nanofarad Jun 13 '13 at 13:39
1

You know I did find the .blend. Here it is. It should be in your e-mail inbox. – Owen Patterson Jun 13 '13 at 17:19
4

I would reccomend you to also add a screenshot of nodes for waves, cause not all people know how to make them(converting noise texture with multiply or in other way) – Adrians Netlis Dec 16 '14 at 18:56

score 17 · Answer 3 · answered May 23 '13 at 05:03

17

Large scale water (almost opaque) looks very different than small scale water (very transparent). Fast water(whiter, low reflectivity) also looks very different than slow water(clearer, high reflectivity). So unfortunately there isn't a simple answer.

Since water is transparent, the lighting and environment which it's in is very important. A drop of water in a blank world is going to be invisible. So realistic lighting and proper environment for it to reflect off helps a lot.

answered May 23 '13 at 05:03

Mike Pan

11,990
1
37
58

If you're doing a fluid sim, fast/slow won't matter; the reflectivity changes (at least in Blender) are due to the presence of additional surfaces within the water, with the gaps between them causing refractions as they rush past. – Kyle Willey May 23 '13 at 15:53

score 12 · Answer 4 · answered Dec 15 '14 at 20:07

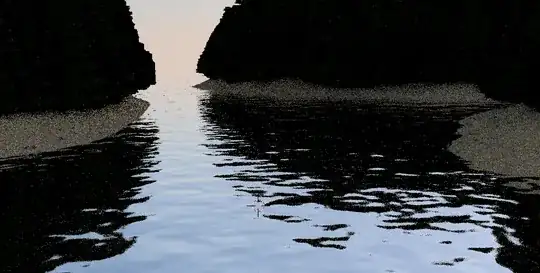

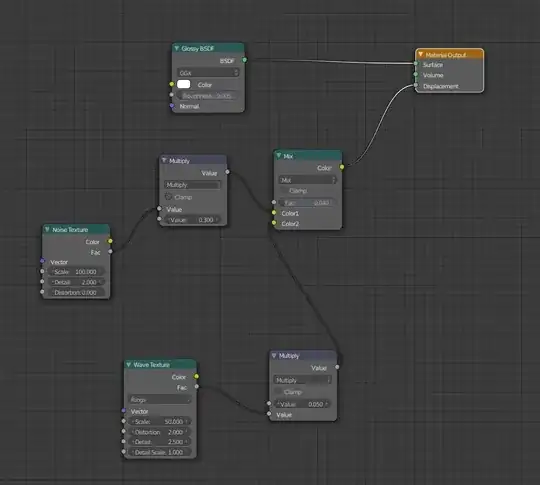

Here is another example for a lake water with very deep and strong reflection; Nodes: Nodes Result: result

I did not let it render much samples(only 3) so the image is low quality, but you can see so water shader looks amazing;)

Hope this answer helps you to make lakes and rivers;)

score 5 · Answer 5 · answered May 23 '13 at 05:02

The Glass BSDF node offers essentially everything that you want.

The IOR you will want to use is 1.333 (from a Blender Artists post), and you'll pretty quickly get a good look for stationary water. If you want foam, you'll have to get a little bit clever with your implementation, but water by itself works pretty well just with the single shader.

If you're using the newest version of Blender, it is also possible to do SSS to mimic the effect of light in water.

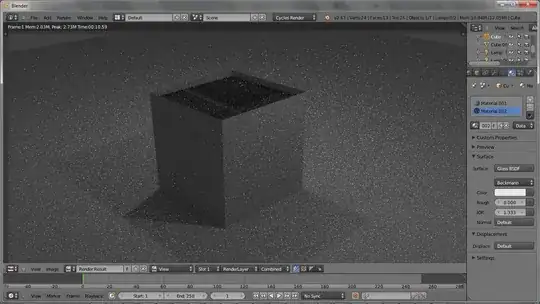

Example: My attempt at making a standard water.

Standard Glass BSDF

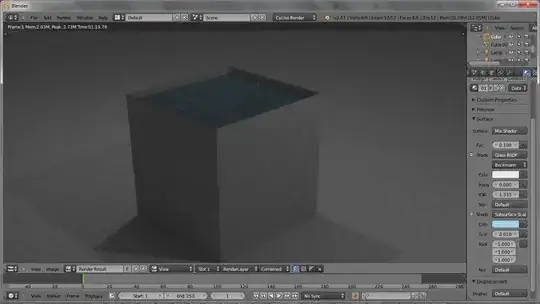

Here's one with SSS; it's not realistic, but could be helpful for portraying deep water (i.e. oceans).

Glass SSS BSDF

In short, I'd strongly recommend using a simple Glass BSDF for your water, and if you run into issues trying to work around it, rather than trying to build the water from scratch using reflection/refraction. Cubes aren't the best way to show this; I put mine inside a "container" because otherwise you get to see the glass reflecting on itself, but this shouldn't be an issue with a more complex model.

Note that the second render got more samples, so any quality discrepancies are likely due to that.

Here's a video I rendered out quick of the first shader in action:
http://youtu.be/yGFLFL04TxU — Kyle Willey, May 23 '13 at 17:02

score 4 · Answer 6 · edited Jun 28 '16 at 23:43

4

The Glass BSDF shader in Cycles should work pretty well. Change the IOR: value (index of refraction) to 1.333, and you should get perfectly clear water. If your looking for a murky type look, use a Mix Shader to mix the Glass BSDF with a Diffuse BSDF.

edited Jun 28 '16 at 23:43

Shady Puck

8,847
6
34
61

answered May 23 '13 at 14:00

CharlesL

15,316
7
53
88

score 1 · Answer 7 · answered Jul 13 '19 at 10:38

1

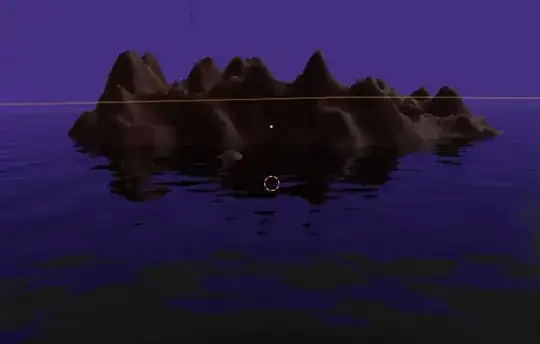

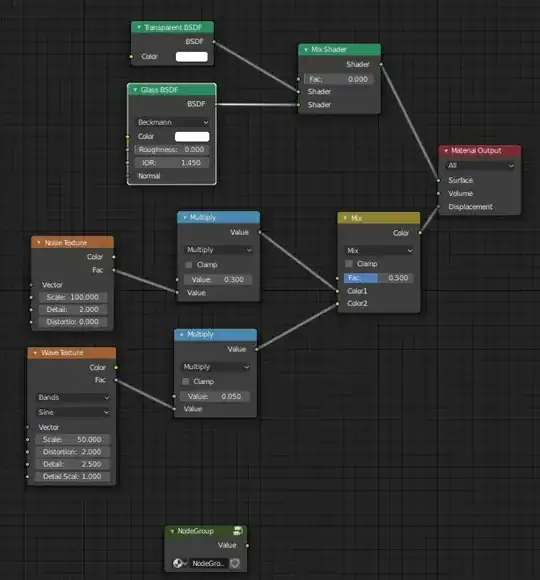

Here take mine. Added stuff from above. Btw. I use EEVEE

answered Jul 13 '19 at 10:38

Someone

111
2

1

Your answer would be much more useful if you explained the nodes. Just dumping a picture of the node tree, while helpful to some people, is really not the best. – David Jul 13 '19 at 14:32

score 0 · Answer 8 · answered Dec 27 '18 at 10:20

0

Glass shader and transparent shader goes to mix shader and IOR in glass shader to 1.33. Remember to crank up the transparent value in render setting to around 8 minimum and light bounces to 4 minimum.

answered Dec 27 '18 at 10:20

user66629

1

2

Can you add some more detail with a screenshot of your node setup and render result? – Scott Milner Dec 27 '18 at 17:21
