I am currently working on an architectural project and I was stopped at the window screens; I have no idea how to go about creating such a fine mesh without reaching ridiculous poly counts.

I could find no information whatsoever about the topic.

Can anybody help?

Thanks in advance.

dunno

dunno
  • 1
  • 1
  • if you use the search box on the top right of this page you might find some information on this an other topics, for example: http://blender.stackexchange.com/questions/50665/how-to-generate-a-metal-mesh/50672#50672 –  Apr 08 '17 at 02:42

2 Answers2

4

As long as you aren't going to be doing any really up-close shots of the windows, just use a plane with transparency. You don't even need an image. You can procedurally generate the texture. Mix an Anisotropic BSDF shader with a Transparent BSDF shader using a Brick Texture as the mix factor. To change the size, adjust the Scale: parameter.

enter image description here

Result:

enter image description here

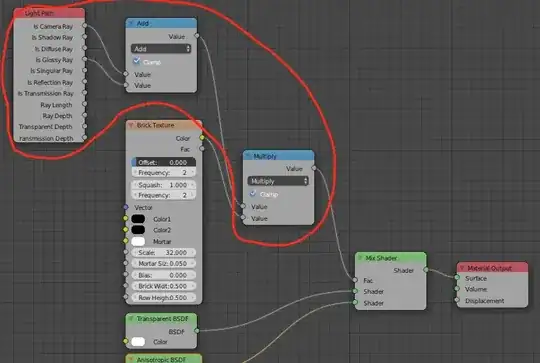

If the renders are looking too dark/taking too long, you can add this to the node tree:

enter image description here

Scott Milner
  • 4,473
  • 1
  • 22
  • 41
2

Glad to help. In this case, you can use an image texture that looks like a mesh and use a diffuse and transparent shader.

  1. I downloaded a mesh looking texture.
  2. Turned into black and white and upped the contrast.
  3. On my plane, I set the image as a texture. NOTICE:I changed it to non-color data in the node.
  4. I mixed a diffuse and transparent shader.
  5. Used the color output from the image texture and connected it to the Factor input on the mixer. Noticed that the transparent shader is on top. (You might have to switch them around if the texture doesn't work).

It's important the little holes on your texture be black and the mesh white.

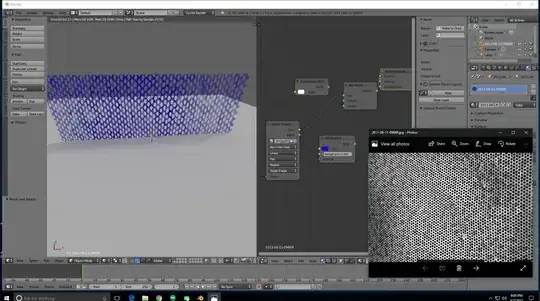

enter image description here

Duarte Farrajota Ramos
  • 59,425
  • 39
  • 130
  • 187
LetTheWritersWrite
  • 142
  • 1
  • 7
