Wonder if someone could help? Whilst viewing a simple pulley model in active camera view, I can only see the foremost part of the model. What am I doing wrong?
Much appreciate any help.

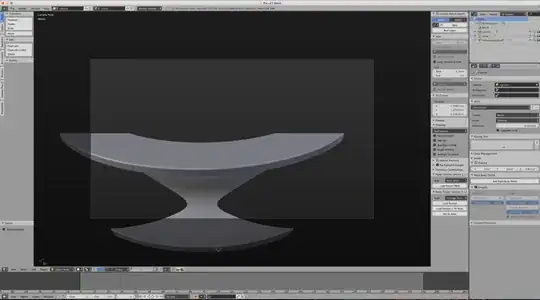

I attach a pic of the full model in 3D View.
Asked
Active
Viewed 100 times
1 Answers
0
The problem is the value of your camera clipping in the Properties Panel N. At the top of the Panel you should see a section called Clip. Increase the End value and this should fix your problem.
Nils Eisen
- 1,204
- 7
- 12
-
Changing the clipping End value from the properties panel, this for some reason never worked, however tried the properties of the camera (select camera first) which also has a clipping section under the 'Lens' properties. I adjusted that and gave me the full model. Updating the Lens End clipping properties does not update on the Properties Panel, it still shows a value of 1m. Should this not update? – Blenderjunkie Apr 19 '17 at 07:44
-
I believe that these two are independent, similar like that you can control the subdivision surface levels for both the viewport and render independently. – Nils Eisen Apr 19 '17 at 07:52
