Fixing SVG Paths

Question

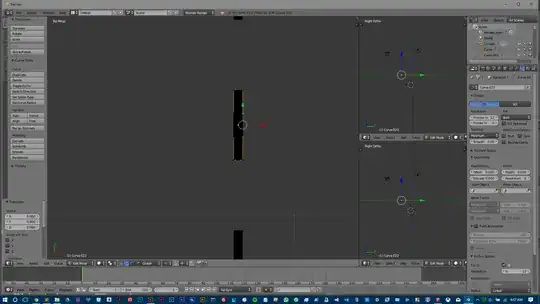

I have imported a floor plan (SVG) into Blender. Upon close inspection the paths that I created are no longer connected and are "Curve" objects how can I fix these quickly? Please provide reference links and keyboard shortcuts if possible.

Thank you, Isaiah

in object mode press Ctrl Alt Shift C then choose "Mesh from curve" — David, Oct 08 '17 at 12:03
@atek I don't have autocad, this is a free / low cost venture for me. — Isaiah Davis, Oct 08 '17 at 12:52
If comment of David did not work then plz attach the file let see how we can help u in more details — atek, Oct 08 '17 at 13:43
Don't needlessly convert to mesh if you don't need to, see https://blender.stackexchange.com/questions/56344/reducing-internal-faces-generated-by-extensive-curve-extrusion for a few cleanup techniques — Duarte Farrajota Ramos, Oct 08 '17 at 13:46
David, thank you I learned that on windows its Alt C that pulls up the dialog window for "Mesh from curve". Unfortunately it gives me a bunch of segments lines which is not desirable. I would like to have on shape or path. Is there a step missing to reach that point? — Isaiah Davis, Oct 08 '17 at 13:48
Possible duplicate of Is there an equivalent to Remove Doubles for Bezier curves? — Duarte Farrajota Ramos, Oct 08 '17 at 13:50
Thank you all for the support and references it's immensely appreciated. I will provide a link to the resource a little but later as I am away from my comp at the moment. — Isaiah Davis, Oct 08 '17 at 14:14
Maybe related: https://blender.stackexchange.com/questions/82794/how-do-i-disconnect-two-points-of-a-bezier-curve/82795#82795 — , Oct 08 '17 at 14:32

score 1 · Answer 1 · 2017-10-20T11:48:43.733

1

When importing paths as SVGs different paths are imported as different curves.

To make different curves into a single one: In Object Mode Select the curves (use the Shift key to select multiple objects)

Then press CtrlJ to Join

From The Blender Manual**.

Join merges all selected objects into the last selected Active object. All object data is linked to the active object (which must be selected). All objects must be of the same type: mesh, curve, surface or armature. If several curves are joined, each one will keep its subtype (NURBS or Bézier).

edited Oct 20 '17 at 11:48

answered Oct 08 '17 at 14:23

I tried this with no resolve. – Isaiah Davis Oct 08 '17 at 14:25
Are you in object mode? – Oct 08 '17 at 14:25
No, I was in edit mode but just in case I will try it again. – Isaiah Davis Oct 08 '17 at 14:26
@MrZak indeed!... fixed – Oct 20 '17 at 11:49
