Why i cant see the poster through transparent material

Question

I have 2 transparent sheet top and bottom and between both there is a poster (image) and emission from bottom. Why i cant see the poster through the transparent sheet and also the emission i have given is white color but its showing red color. May i know why the poster is not display and the emission is red.

Transparent Material

Looking for this type of effect

@cegaton plz im attaching the file due to low internet file is enable sorry for it — atek, Jan 07 '18 at 15:53
please make an effort to describe your scene, materials, etc. Don't make questions that rely on others downloading the file only. — , Jan 07 '18 at 16:08
@cegaton i have edited the question and reference image what effect im looking for — atek, Jan 07 '18 at 16:19
On the second mix shader you don't have an input. That will make it black. — , Jan 07 '18 at 16:44
See: How to illuminate the darkness inside glass objects in Cycles? — , Jan 07 '18 at 16:45
Possible duplicate of: https://blender.stackexchange.com/questions/2558/how-to-illuminate-the-darkness-inside-glass-objects-in-cycles — , Jan 07 '18 at 16:52
@cegaton why emission light change its white but showing red — atek, Jan 07 '18 at 17:14
All you need is a light to show the poster, right? I don't understand the issue — J Sargent, Jan 07 '18 at 19:56

score 1 · Answer 1 · edited Jun 10 '20 at 12:57

1

You need to move the poster&LED plane between the two light emission planes.

As in the file you posted:

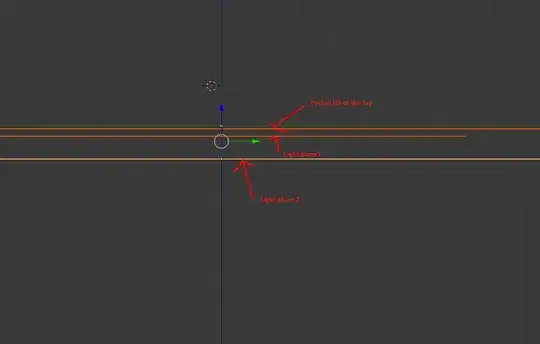

After moving the poster&LED plane into the middle

After moving the poster&LED plane down the image starts to appear

edited Jun 10 '20 at 12:57

Community

1

answered Jan 07 '18 at 17:57

Tim

252
3
10

But in real life the poster is in middle and the led is at the back end so its not the answer i think so – atek Jan 08 '18 at 02:58
1

@atek if you want light to go through the image you will need to make it slightly transparent. The problem at the moment is the image sheet is fully blocking out the light from the backlight – Tim Jan 08 '18 at 07:38
