I have a multiwire beach circuit which feeds the furnace and the laundry area. At the junction box where the neutrals are tied together, what do I do with the ground wires from each circuit (furnace & laundry)? Are they tied together? Not used?
Asked
Active
Viewed 301 times
4
ThreePhaseEel
- 83,293
- 29
- 137
- 230
Mak2290
- 177
- 1
- 6
-

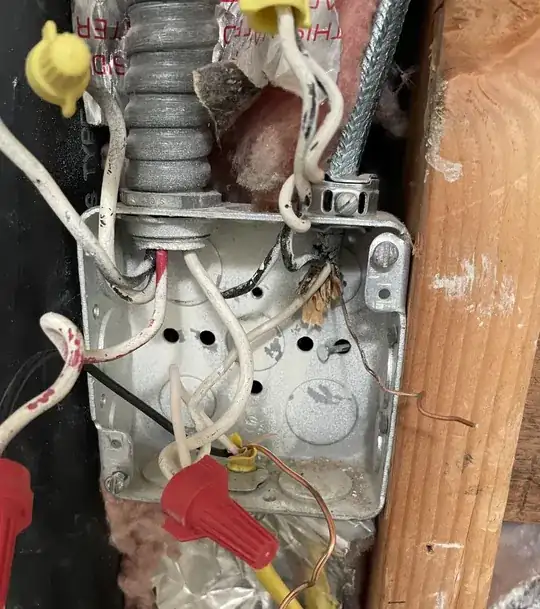

Post a pic of the inside of the junction box. – RibaldEddie Apr 23 '22 at 03:09
1 Answers
9
Tie them all together and to the box
Grounding conductors are always tied together at every box; since you have a metal box, you need to provide a grounding pigtail to the box as well.
ThreePhaseEel
- 83,293
- 29
- 137
- 230
-
1OP needs to find a ground screw. It should be a 10-32 machine screw with a hex or round head. – RibaldEddie Apr 23 '22 at 03:29
-
1@RibaldEddie -- yeah, they can just get the pre-made grounding pigtails and put one in the correct size hole tho :) – ThreePhaseEel Apr 23 '22 at 03:30
