3

enter image description here
The square shank suggests its for a bit and brace not a lathe?

enter image description here

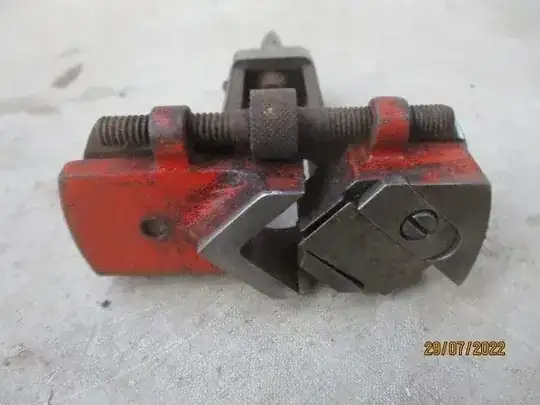

Clearly a cutter that can be adjusted inward

enter image description here

enter image description here
Sliding part appears to be a square dovetail

enter image description here

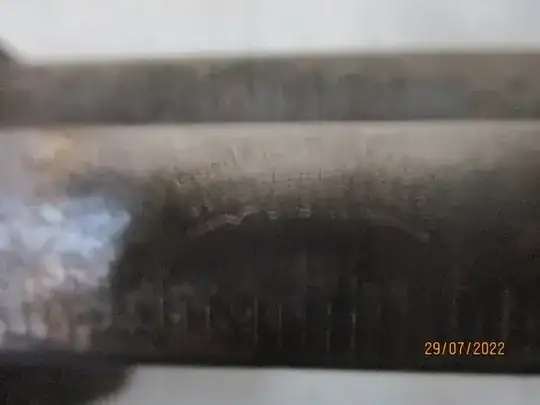

Patent date Dec 5 1911 perhaps.

enter image description here
This photo is a bit fuzzy, sorry.

I have no idea what this tool is - listed at https://www.trademe.co.nz/3703975458

Best guess is a groove cutter for a hand drill?

Criggie
  • 10,616
  • 2
  • 24
  • 70
  • 1
    Could be a tubing cutter, but with a limited length for the part that can be cut off. – FreeMan Jul 30 '22 at 00:09
  • 1
    That square tapered end will fit a drill brace. I can't imagine what trade this tool is for. – Jasen Jul 30 '22 at 00:52
  • 1
    Inside of part with blade looks circular, like it should slide over a a round metal rod. Perhaps this is a manual threader for thick rods? Put into some machine and pushed onto rod to cut threads? – Chris Jul 30 '22 at 01:12
  • 1
    Reddit has a sub known as "what is this thing" that may provide an accurate answer in surprisingly short time. – fred_dot_u Jul 30 '22 at 10:25
  • 1
    Looks like its for boring a hole in the end of a rod. The rod could be round or square. – Hot Licks Jul 30 '22 at 12:52

1 Answers1

11

Tenoning tool for a bit brace.

Since it's rather hard to describe how it works in words in a way that makes sense to people unfamiliar with one, I'm resorting to linking a video.

Example in use (of a slightly different design) shown here.

Ecnerwal
  • 213,340
  • 10
  • 261
  • 571
  • 1
    This makes sense the v will hold any rod and the cutter can be adjusted for the size the brace would provide the torque to turn the cutter+ – Ed Beal Jul 30 '22 at 18:10
  • 1
    Did a bit of googling before and one site(letools?) did have a picture of them. Did look close but was not sure if close enough, did not show the base. – crip659 Jul 30 '22 at 21:05
