3

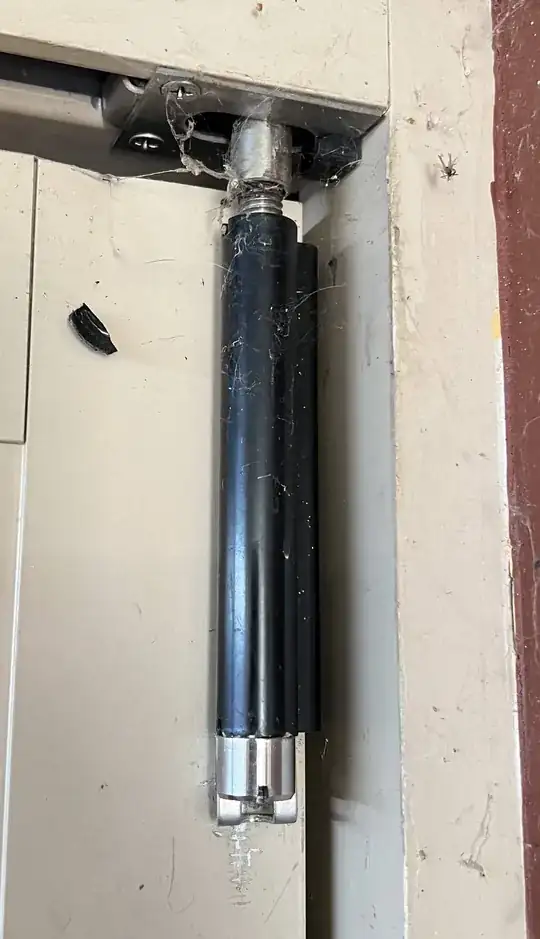

enter image description here

How do I adjust this hinge and does it have a name?

Trevor
  • 31
  • 1

1 Answers1

3

Looks like a 2-way adjustable hinge, similar to uPVC doors & tilt & turn windows sometimes have.

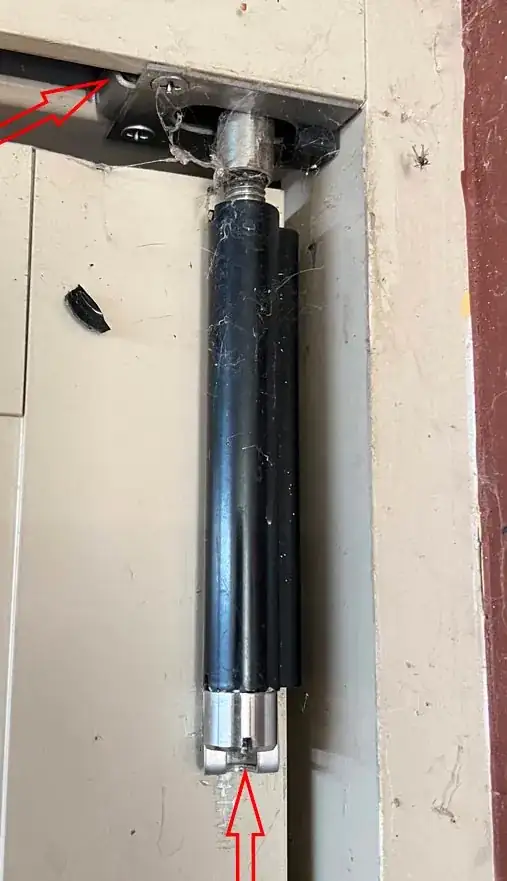

The screw underneath is for height. There should/may be one for left/right adjustment inside the slot, where the top arrow is.
They sometimes have a third axis, but this one doesn't look like it does.
Sometimes, both hinges of a pair like this have independent height adjustment - in which case you need to adjust both similarly to avoid tension.

enter image description here

Tetsujin
  • 11,467
  • 1
  • 20
  • 40
