So I have a relatively new dishwasher that just completely stopped working the other day. It's still under warranty but before going though all the hassle I want to check if there is nothing simple it could be.

I have checked all the basics such as fuses in the plug and if the socket actually works with other appliances. I have not yet opened it up but have no problem with doing so if there are any good ideas as to what could be the problem.

I remember the night before it stopped showing any signs of life it made some strange beeps just after finishing a cycle.

So far the net has not provided any clues.

its a LG, not sure on the exact model and seems like each store sells the same thing with different model numbers anyhow.

It has the text 'Inverter DirectDrive' and 'TrueSteam' on the front

dogmatic69
  • 151
  • 1
  • 1
  • 8
  • Look on the wall: sometimes they put switch there to turn it off. Sometimes someone will flip it and think it's a light, turning it off by accident. – Roger Dec 04 '17 at 01:09

6 Answers6

2

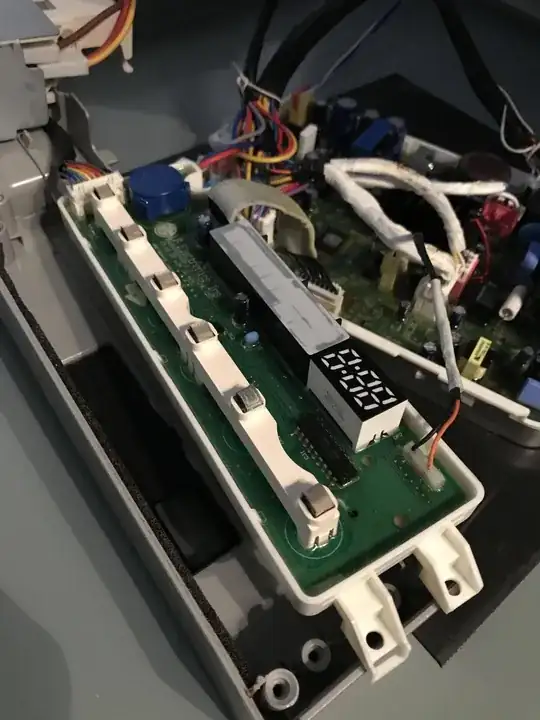

So got the company out to fix it under guarantee and turns out it is just a very poorly designed system for buttons. It seems to be a AC Hum touch type button. The dish washer has small sponge (5mm x 5mm) wrapped with some conductive material which is meant to be attached to metal rods which forms the button inside the machine.

This gives the 'soft touch' as there is no moving parts like a normal button.

The problem was that these little sponges had fallen off the metal post which stopped it from working the way it was intended. Simple fix to re-attach the sponge back into place.

Well the fix from the guy that was sent out lasted all of 3 days before it broke again so this time I opened it up and fixed it myself (hopefully permanently).

Dead simple job, about 15 minutes taking the front panel off and glued them back into place with some contact adhesive.

Hope this will help someone else that has problems with a 'soft touch' button that will not work any more. Should be a similar type system for other soft touch buttons found on appliances.enter image description here

Community
  • 1
dogmatic69
  • 151
  • 1
  • 1
  • 8
1

Check the appliance's power cable shows no signs of damage.

The appliance's manual will state if the appliance has a separate and accessible fuse (unlikely I think).

If the front display panel shows no indications of power - no lights/LEDs illuminated, completely blank LCD etc, no sounds from the pump when controls set to drain etc. In that case you should really return it to the vendor under warranty and get a refund or replacement (your choice)

Opening it up will void your warranty and leave you liable for the cost of any parts that need replacing.

RedGrittyBrick
  • 24,370
  • 12
  • 47
  • 90
1

I have just finished fixing our LD1454TFES2 LG Truesteam DirectDrive. It developed an intermittent power fault where the power button would only work.. sometimes. We scratched our heads , stood on one leg , crossed fingers as that seemed to help... well it did, sometimes, then it finally wouldn't power on at all. I checked all the blogs and heaps of people have had the same problem. but dogmatic69's post above is the best answer on the internet! The little sticky pads that connect the internal buttons to the plastic shell (Panel Assembly) had simply slipped off. LG know this is a problem - since later versions of the part AGL73457207, the Panel Assembly, have an improved design to stop the pads slipping off! ( raised circular housings on the interior panel at each button point.) Great machine - but we almost lost it - worth fixing.enter image description here

Daniel Griscom
  • 6,269
  • 33
  • 31
  • 41
zizzag2419
  • 11
  • 2
  • I have called them out so often that they actually just came one day and took it away. Got a new replacement. Not had any issues. The one I had must have been a dud, new one has no issues (6 months in) – dogmatic69 Mar 23 '15 at 10:30
0

Same problem as dogmatic (above) described - disassembled door and removed the board and used a contact adhesive as suggested (superglue)- which I think insulated the carbon felt pad from the metal rod. This didn't work.

So I reopened the door to access the assembly a second time, painted the felt-pad to rod connection with silver dag, to ensure a good electrical contact. For good measure folded some aluminium foil and placed this between the "button" on the external casing and the felt pad. Now works better than ever :-)

The whole process literally takes 10 minutes to fix.

Make sure the dishwasher plug is out and the board is not live when you start moving it around - as you might end up with a more expensive problem than when you started (or worse!)

A very clever switch - but awful manufacturing. LG should hang their heads in shame.

JonC
  • 1
0

So my lg front load washer had absolutely no power to the front board. After unplugging and attempting to reboot....NOTHING. I than read a blog which told me to unplug the machine....push the power button and open and close the door. you have to repeat this step 12 times in 60 seconds and then plug it back in. I thought it was a joke but had nothing to loose. Well ..SUCCESS !!!! Everything came back on and it works perfectly. Hope this helps someone before they spend a couple hundred dollars on a repair bill!!!!!!

richard rivera
  • 11
  • Not only did you not reference the blog post, but this seems rather ridiculous to perform any reset procedure when the power is off. It's dead Jim – raterus Aug 28 '18 at 16:44
0

While @raterus makes a very sensible point, I can say that @richard rivera is correct -- the Kabuki of turning off the breaker for an extended period accompanied by several open/close cycles actually does work. I've read elsewhere that the power switches are themselves prone to failure, but I didn't touch any of the panel switches -- just latched and unlatched the door several times while the power was off, and was surprised to see the machine power up thereafter.
