I am looking at this product, and wondering if I can install wheels on them.

enter image description here

Tester101
  • 131,561
  • 78
  • 320
  • 610
James Mud
  • 21
  • 1
  • 1
  • 2
  • 5
    You want to push/pull sideways on a tall, skinny structure with NO visible diagonal bracing? – DJohnM Jan 05 '16 at 21:00

5 Answers5

4

You don't want to install wheels on those shelves. They will fall apart on you.

Instead of trying to find a way to install wheels on shelves, find shelving that is already on wheels and buy that.

longneck
  • 21,248
  • 4
  • 48
  • 79
3

Those shelves require a solid base. So you'd have to build a solid base (plywood could work) and attach casters to those. Then attach the shelf to that. However, you still have the issue of moving said shelves. Those shelves are designed primarily for vertical loads and tend to not handle lateral loads well at all...which would be the case when you push or pull against them to move them.

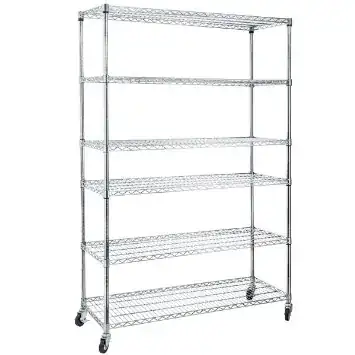

As such, I'd strongly suggest not using those types of shelves if you want them on wheels. Instead, use wire racks (typically used in kitchens) that are designed specifically for casters and handling being pulled and pushed around:

enter image description here

You can find these in most big-box stores. Sam's Club and Costco often sell them.

I have both these types of shelves and the ones you refer to. There is a price difference, but it's not huge and I much prefer the wire shelves. They're also much more durable in terms of disassembly and reassembly when moving.

DA01
  • 24,335
  • 27
  • 78
  • 148
2

There is no "one-step" way to install casters on these types of shelves. You would have to build a base, or affix them to something like a mobile power tool base. In general this would be a lot of work for a potentially dangerous rolling shelf.

You would be better off finding a wire-type shelving unit, which are often built either with casters, or slots for casters in each post. The cheaper the model, the more risk of collapse, so if you are planning on putting anything heavy on it, I recommend finding a restaurant model, which are built to handle pretty heavy loads.

ench
  • 824
  • 1
  • 6
  • 9
  • 1
    I'd say there's no way to install casters at all. Having used a few sets of these shelves, they are very unstable if you try to move them. – JPhi1618 Jan 05 '16 at 19:13
0

These bolt right on to the frame:

https://www.amazon.com/4pc-Storage-Boltless-Shelving-Capacity/dp/B08FF8VT28/ref=asc_df_B08FF8VT28/?tag=hyprod-20&linkCode=df0&hvadid=459643978206&hvpos=&hvnetw=g&hvrand=1825744523722113477&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=1014045&hvtargid=pla-945308120296&th=1

GTool
  • 9
  • 1
  • 3
    Your answer could be improved with additional supporting information. Please [edit] to add further details, such as citations or documentation, so that others can confirm that your answer is correct. You can find more information on how to write good answers in the help center. – Community Aug 22 '22 at 20:28
0

You could drill through the bottom shelf and attach some casters and then reinforce the sides with some wood or other means. This should make it durable enough to roll around somewhat.

I guess the other option would be to mount a support below the bottom shelf, screwed on through the corner holes, and attach the casters to that. Then again attached some siding if needed. Same concept, just a different way to get the wheels on there.

As the others said though, this setup might not be the best choice for rolling around. Even if you can't get something else with wheels, there would be better choices that would be easier to attach to.

TFK
  • 3,714
  • 6
  • 22
  • 44
  • The shelves on these are not connected to the sides at all, they simple sit ontop of a ledge. – ench Jan 05 '16 at 20:05
  • I guess it's still possible to bolt them to the frame though? This isn't in any way the best answer for having a useful product, but it's still feasible. – TFK Jan 05 '16 at 20:13
  • 1
    You would have to attach them to the vertical rails, or to a stand on which the rails sit. The shelves and brackets are held in place by gravity and friction, so you can't use them to support the frame. – ench Jan 05 '16 at 20:20
  • Oh, I get you now. I assumed that they would at least be connected to the frame. – TFK Jan 05 '16 at 20:22
