The divergence a 2D vector Field $\mathbf{F}(x,y) = F_x(x,y)\, \hat{i} + F_y(x,y)\, \hat{j}$ is defined as $$\mathrm{div}\,\mathbf{F} = \bigg( \dfrac{\partial F_x}{\partial x} + \dfrac{\partial F_y}{\partial y}\bigg).$$ This can be calculated IF a function $\mathbf{F}(x,y)$ is given.

How do I compute the divergence if I don't know the function $\mathbf{F}(x,y)$ that describes my vector field but rather I have an array of numbers (noisy) that form a vector field as depicted below.

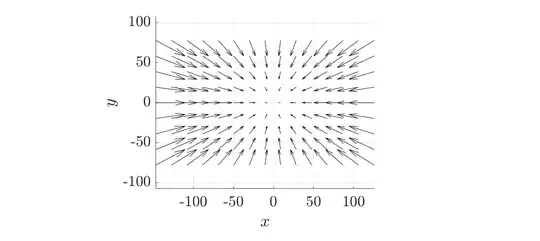

enter image description here

I know only the $(x,y)$ coordinates of the tip and the tail of each vector. Just by looking at the picture below, the field has a negative divergence. How can one calculate the divergence of such a field?

Note: This is a part of the problem addressed here

unfinished_sentenc
  • 77
  • Thanks for pointing out the typo. – unfinished_sentenc Sep 30 '20 at 17:05
  • Since you know your data is "noisy", it makes sense to try smoothing it before trying to do numerical differentiation. A typical approach (see here) is to fit a polynomial to local data points, much like a moving average. It is fortunate that you do not need more than first (partial) derivatives to estimate divergence. – hardmath Sep 30 '20 at 17:56
  • Is smoothing done to make the field differentiable? How do I algebraically express the divergence equation in this case for 2 point clouds each with $M\times N$ entries of the coordinates? – unfinished_sentenc Sep 30 '20 at 18:48
  • As you can guess from the picture, the points are moving further away along $z-$axis. If it were to move towards the observer, the vectors would point outwards. My goal is to first find the divergence and using it find the translation amount along $z-$axis. Then translate the points (by the amount from divergence) such that the field vanishes. – unfinished_sentenc Sep 30 '20 at 18:56
  • You described the array of numbers as noisy, and numerical differentiation will amplify that noise. Thus smoothing is suggested as a means of mitigating the noisiness of your data. Experimentation is needed to see if results that suit your application are possible. – hardmath Sep 30 '20 at 19:33

1 Answers1

1

You can use the divergence theorem to approximate the divergence and prevent noise from ruining your approximation.

We have $$\int_C \mathbf{F} \cdot d\mathbf{S} = \int_A (\text{div} \mathbf{F}) dA$$ where the left hand side integral is over the boundary $C$ of any sufficiently nice set $A$ and the right hand side integral is over the set $A$.

Now consider a small area $A$ surrounding the point $p$ and assume that you know $\mathbf{F}$ at some points $q_i$ of $C$. You can then approximate the left integral using the a weighted sum of the $\mathbf{F}(q_i)$. The integral on the right is approximately $ A \text{div} \mathbf{F}(p)$.

Your graph suggests that you know $\mathbf{F}$ on a uniform grid with square cells. For each cell with corners $a_i$ you can find a new cell such that $a_i$ marks the middle of the $i$th edge of the new cell and the outward normal is well defined at $a_i$. You need to rotate 45 degrees to get the new cell. Use the new cell to compute an approximation for the divergence at the center of the new cell.
