Combine graphics with GraphicsGrid

Question

  FlatEllipsoid[x_, y_, dz_] := dz^2 + x^2/25 + y^2/9

RandomOffsets =
  Table[RandomReal[UniformDistribution[{-1, 1}]], {i, 100}];

g=Table[ContourPlot[
  FlatEllipsoid[x, y, RandomOffsets[[i*j]]] == 1, {x, -5,
   5}, {y, -3.5, 3.5}, PlotRange -> {{-5.5, 5.5}, {-3.5, 3.5}},
  AspectRatio -> 0.6], {i, 1, 10}, {j, 1, 10}]

When I wrap g to GraphicsGrid it gives a messy output. What is the proper way to combine the graphic objects of g?

GraphicsGrid is not bad per se, you can e.g. simply use a dedicated ImageSize either in your for your plots or the GraphicsGrid. — Yves Klett, Dec 02 '15 at 13:45

score 3 · Accepted Answer · edited Apr 13 '17 at 12:55

3

You can get what you want out of GraphicsGrid, by writing GraphicsGrid[g,ImageSize -> n] where n is the total width of the grid, but I still find that it hogs more system resources than Grid. But Grid will simply display the plots at their own predefined size, you can't adjust the overall size of the Grid.

That's why I stay away from GraphicsGrid, GraphicsRow and GraphicsColumn whenever possible, I just use Grid

Grid[g]

But better than that, use Jens's plotGrid function to get rid of all that white space and duplication of tick marks.

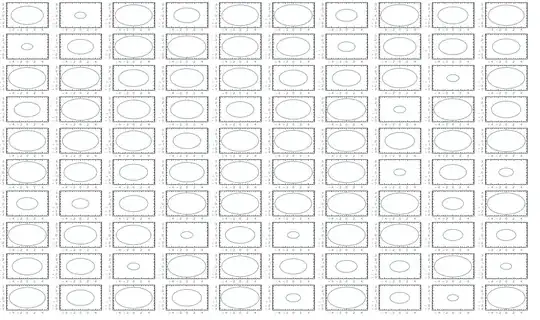

 plotGrid[g, 1200, 720]

edited Apr 13 '17 at 12:55

Community

1

answered Dec 02 '15 at 13:28

Jason B.

68,381
3
139
286

Thanks. I found this in an old book. It uses GraphicsArray. I thought GraphicsArray has been replaced by GraphicsGrid. – Dimitris Dec 02 '15 at 13:38
Apparently it is still there, but the help page says "As of Version 6.0, GraphicsArray has been superseded by GraphicsGrid and Grid." – Jason B. Dec 02 '15 at 13:45
Both answers are great. Thanks a lot! – Dimitris Dec 02 '15 at 17:06

eldo · Answer 2 · 2015-12-02T14:11:41.473

I would use FrameTicks -> None

g =
  Table[
   ContourPlot[
    FlatEllipsoid[x, y, RandomOffsets[[i*j]]] == 1, {x, -5, 5}, {y, -3.5, 3.5},
    FrameTicks -> None,
    PlotRange -> {{-5.5, 5.5}, {-3.5, 3.5}},
    AspectRatio -> 0.6],
   {i, 1, 2}, {j, 1, 5}];

And then

Grid[g, Spacings -> {-1, -1}]

Or

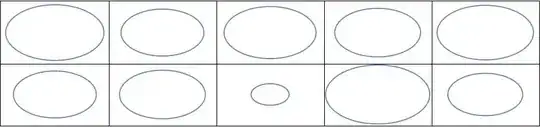

Grid[g, Spacings -> {-1, -1}, Dividers -> All]

Or label them somwhow with Epilog and Text

g =
 Table[
  ContourPlot[
   FlatEllipsoid[x, y, RandomOffsets[[i*j]]] == 1, {x, -5, 5}, {y, -3.5, 3.5},
   FrameTicks -> None,
   Epilog -> Text[Row[{i, " ", j}]],
   PlotRange -> {{-5.5, 5.5}, {-3.5, 3.5}},
   AspectRatio -> 0.6],
  {i, 1, 2}, {j, 1, 5}];

Grid[g, Spacings -> {-1, -1}]

You can use ArrayReshape to modify the layout:

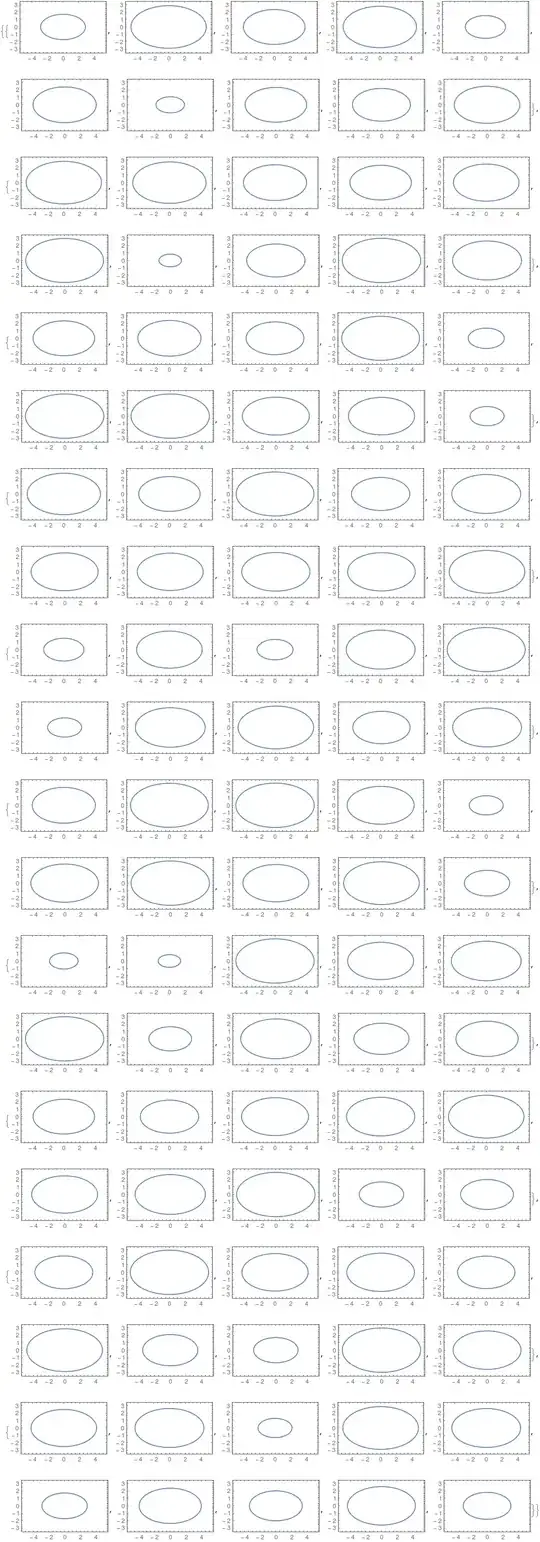

Grid[ArrayReshape[g, {5, 2}], Spacings -> {-1, -1}]
