I have a graphics expression which renders nicely as a closed curve when put in Graphics, I don't understand why I can't get the lines from DiscretizeGraphics or BoundaryDiscretizeGraphics:

 p = {BSplineCurve[{{0.1288208346384372`,
         0.24716061799090383`}, {0.18307091717113483`,
         0.29633799186027077`}, {0.18104183370580254`,
         0.25496700929944494`}, {0.22444189973196066`,
         0.2943089083949385`}, {0.18307091717113483`,
         0.29633799186027077`}, {0.23732099970383244`,
         0.34551536572963765`}}, SplineWeights -> {1, 15, 25, 25, 15, 1}],
       BSplineCurve[{{0.1288208346384372`,
         0.47866942629949966`}, {0.18307091717113483`,
         0.41209239601456865`}, {0.13474007204408336`,
         0.417023175115462`}, {0.17814013807024148`,
         0.3637615508875172`}, {0.18307091717113483`,
         0.41209239601456865`}, {0.23732099970383244`,
         0.34551536572963765`}}, SplineWeights -> {1, 15, 25, 25, 15, 1}],
       Line[{{0.1288208346384372`,
         0.24716061799090383`}, {0.1288208346384372`,
         0.47866942629949966`}}]}
{Graphics@p, DiscretizeGraphics[p]}

![enter image description here

I looked though the options but couldn't find any PlotPoints like option.

J. M.'s missing motivation
  • 124,525
  • 11
  • 401
  • 574
M.R.
  • 31,425
  • 8
  • 90
  • 281
  • PlotRange doesn't seem to be the issue. However, for reasons that I don't fully understand, removing the SplineWeights in your BSplineCurves improves the situation, but doesn't solve it completely. – MarcoB Dec 09 '15 at 02:17
  • @MarcoB yes is see that, better but still has wholes... weird! – M.R. Dec 09 '15 at 05:09
  • Annoyingly, JoinedCurve[] does not play well with DiscretizeGraphics[]. – J. M.'s missing motivation Dec 09 '15 at 05:13
  • I don't now the exact answer but my guess is the problem is with line and BSplineCurve combination. The line is bounded piece wise linear primitive and BSplineCurve is a nonlinear primitive with an only approximation represented. If you try BoundaryDiscretizeGraphics you get an error saying 'BoundaryMeshRegion::buncl: At least one boundary was not closed in'. So the line and spline joined points does not overlap due to approximation of spline. – s.s.o Dec 09 '15 at 10:28
  • @s.s.o how can I fix that – M.R. Dec 10 '15 at 19:47
  • Hi, you have asked once a question about indenting sub cells like text to last item etc. Can't find it now, could you point me to it? – Kuba Dec 11 '15 at 07:38
  • BezierCurve won't discretize correctly (there's a bug). http://mathematica.stackexchange.com/q/98147/12 I haven't read your question in detail, but I thought I should warn you about this in case BSplineCurve has problems too. – Szabolcs Dec 11 '15 at 08:56

2 Answers2

13

So DiscretizeGraphics seems to always miss the first or last point of a BSplineCurve (it seems to do it with a BezierCurve as well). Here's the simplest example of this,

pts = {{.5, 0}, {1, 0}, {1, 1}, {.5, 1}, {0, 1}, {0, 0}, {.5, 0}};
GraphicsRow[{Graphics@#, DiscretizeGraphics@#} &@BSplineCurve[pts],
 ImageSize -> 600]

enter image description here

Why does it do this? Not sure, hopefully one of the kernel developers that hang around here can chime in. It seems at first to be related to this problem with discretizing Bezier curves, but there you have the problem that BezierFunction is awful. Here we have a workaround, because BSplineFunction works just fine.

Just extract the points from the curve, create a Line object from them, and discretize that. Inspiration came from this answer over on stackoverflow,

discretizableBSplineCurve[pts_, opts : OptionsPattern[]] :=
 Line@(BSplineFunction[pts,
     Evaluate[FilterRules[{opts}, Options[BSplineCurve]]]] /@
    Range[0, 1, .01])

Trying it on the above case,

GraphicsRow[{Graphics@#, DiscretizeGraphics@#} &@
  discretizableBSplineCurve[pts], ImageSize -> 600]

enter image description here

Here it is applied to puzzle piece M.R. is drawing,

p1 = {discretizableBSplineCurve[{{0.1288208346384372`,
      0.24716061799090383`}, {0.18307091717113483`,
      0.29633799186027077`}, {0.18104183370580254`,
      0.25496700929944494`}, {0.22444189973196066`,
      0.2943089083949385`}, {0.18307091717113483`,
      0.29633799186027077`}, {0.23732099970383244`,
      0.34551536572963765`}},
    SplineWeights -> {1, 15, 25, 25, 15, 1}],
   discretizableBSplineCurve[{{0.1288208346384372`,
      0.47866942629949966`}, {0.18307091717113483`,
      0.41209239601456865`}, {0.13474007204408336`,
      0.417023175115462`}, {0.17814013807024148`,
      0.3637615508875172`}, {0.18307091717113483`,
      0.41209239601456865`}, {0.23732099970383244`,
      0.34551536572963765`}},
    SplineWeights -> {1, 15, 25, 25, 15, 1}],
   Line[{{0.1288208346384372`,
      0.24716061799090383`}, {0.1288208346384372`,
      0.47866942629949966`}}]};
{Graphics@p1, DiscretizeGraphics[p1]}

enter image description here

Another way to do it would be to modify 'DiscretGraphics, that way you can work with objects that still have the headBSplineCurve`.

discretizeGraphics2[graphics_] :=
 DiscretizeGraphics@(graphics /. {BSplineCurve[
       a__] :> (Line@(BSplineFunction[a] /@ Range[0, 1, .01]))});

Trying this on p as defined in the OP,

{DiscretizeGraphics@p, discretizeGraphics2@p}

enter image description here

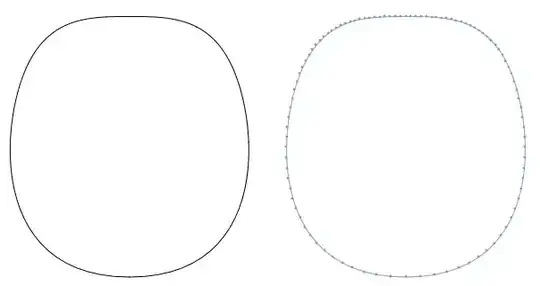

Edit So I'm looking at that last picture and thinking that they don't look identical, and wondering if my strategy of converting to a line first messes up the graphic. But when compared to the original, un-discretized version, my system produces a much more faithful reproduction when pre-converting the curve:

GraphicsRow[{Show[{Graphics@p, DiscretizeGraphics@p}],
  Show[{Graphics@p, discretizeGraphics2@p}]}]

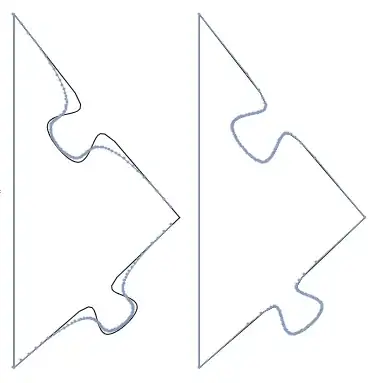

enter image description here

And I can't seem to improve the plot on the left with any combination of options to DiscretizeGraphics (AccuracyGoal, PerformanceGoal, PrecisionGoal, or MeshQualityGoal). It must be possible, as M.R.'s DiscretizeGraphics in his example image looks much better than mine. I'm using version 10.2, perhaps it has been improved in version 10.3?

Edit2 Following J.M.'s suggestion, I've worked up a version that uses ParametricPlot to adaptively sample the BSplineFunction. It seems to be an order of magnitude slower (not that it is all that slow), and ends up plotting many more points, but it could lead to a more faithful reproduction of the original BSplineCurve objects,

discretizeGraphics2b[graphics_] :=
 DiscretizeGraphics@(graphics /. {BSplineCurve[
       a__] :> (Line@(Cases[
          ParametricPlot[BSplineFunction[a][t], {t, 0, 1}],
          Line[{x__}] :> x, \[Infinity]]))});

{discretizeGraphics2@p,
 discretizeGraphics2b@p}

enter image description here
