Inset in ArrayPlot

Question

Bug introduced in 9.0 or earlier and persisting through 11.0.1 or later

It seems the options in the Inset object will be ignored when passing to ArrayPlot:

ArrayPlot[CellularAutomaton[30, {{1}, 0}, 10],
Epilog -> Inset[Plot[Sin[x],{x, -10, 10}, Frame -> True]]]

Apparently, no frame is shown in the Inset:

However, once the insetting is done via Show, the option Frame->True turns out to be working again:

Show[ArrayPlot[CellularAutomaton[30, {{1}, 0}, 10]],
Epilog -> Inset[Plot[Sin[x], {x, -10, 10}, Frame -> True]]]

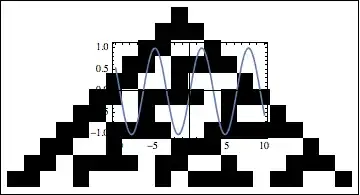

(* output: *)

Can someone please explain the behavior of Inset in ArrayPlot?

score 7 · Accepted Answer · answered Jan 03 '16 at 11:10

7

When you compare the output expression of your two examples, you see that the Graphics object that is inset into the ArrayPlot is stripped off the Frame option. Knowing this, there are several ways to prevent this.

A very easy and not hacked solution is to evaluate the ArrayPlot and insert the Epilog in the final Graphics:

Append[
 ArrayPlot[CellularAutomaton[30, {{1}, 0}, 10]],
 Epilog -> Inset[Plot[Sin[x], {x, -10, 10}, Frame -> True]]
]

answered Jan 03 '16 at 11:10

halirutan

112,764
7
263
474

Thanks! Can we consider such behavior a bug of ArrayPlot? – sunt05 Jan 03 '16 at 11:18
1

Yes, I would consider this a bug and you should definitely write a report to support@wolfram.com – halirutan Jan 03 '16 at 11:20

score 6 · Answer 2 · edited Jun 16 '20 at 09:23

This is interesting and peculiar. Spelunking this example lead my discovery of the function:

Needs["GeneralUtilities`"]
GraphicsArrayPlotDumpPrivate`stripOptions // PrintDefinitions

Graphics`ArrayPlotDump`Private`stripOptions[opt2___, discard_List] :=
  Module[{opt =
     Flatten[{opt2}]}, ((opt =
        Graphics`ArrayPlotDump`Private`stripOptions[opt, #1]) &) /@ discard; opt];
GraphicsArrayPlotDumpPrivatestripOptions[opt2___, OP_] := Module[{opt = opt2}, Delete[opt, Position[opt, g_?(SystemUtilitiesStringName[#1] === SystemUtilities`StringName[OP] &) -> _]]];

So there exists a function specifically for discarding unwanted options within an expression.

It is used by ArrayPlot expressly for Frame:

tr = Trace @ ArrayPlot[{Range@5}, Epilog -> Inset["foo"]];
Cases[tr, x : HoldPattern[GraphicsArrayPlotDumpPrivate`stripOptions[_, Frame]] :>
  HoldForm[x], -1, 1]

{Graphics`ArrayPlotDump`Private`stripOptions[
  Graphics`ArrayPlotDump`Private`opt$7350, Frame]}

Graphics`ArrayPlotDump`Private`opt$xxx contains our Inset:

{Epilog -> Inset["foo"], GridLinesStyle -> Directive[GrayLevel[0.5, 0.4]]}

I believe that stripOptions should not have been written to operate at all levels of the expression. It could instead have been written to operate at only levelspec {1} if first the option list were flattened.

Here is a patch to effect this:

Graphics`ArrayPlotDump`Private`stripOptions[opt2___, OP_] :=
  Module[{opt = Flatten @ {opt2}},
   Delete[opt,
    Position[opt,
     g_?(System`Utilities`StringName[#1] ===
          System`Utilities`StringName[OP] &) -> _,
     {1}
    ]
   ]
  ];

Now:

ArrayPlot[
 CellularAutomaton[30, {{1}, 0}, 10],
 Epilog -> Inset[Plot[Sin[x], {x, -10, 10}, Frame -> True]]
]

Please let me know if you discover any failures induced by this patch.

+1, A simpler workaround is to exclude this stripOptions for the needed option Graphics`ArrayPlotDump`Private`stripOptions[opt2___, Frame] := opt2 — Basheer Algohi, Oct 25 '16 at 20:46
@Algohi I presumed that there is a reason that Frame to be stripped in some cases and I wanted to modify the behavior as little as possible. My best guess is that the function should have been written to operate only at level one, as described. Thanks for the vote! — Mr.Wizard, Oct 26 '16 at 11:46

score 5 · Answer 3 · answered Jan 02 '16 at 03:34

This does seem to be a bug because it doesn't happen in other related functions, such as ReliefPlot.

Here is a way to emulate the desired behavior with ReliefPlot:

ReliefPlot[CellularAutomaton[30, {{1}, 0}, 10],
  LightingAngle -> None,
  ColorFunction -> Function[Blend[{White, Black}, #]],
 DataReversed -> True,
 Epilog -> Inset[Plot[Sin[x], {x, -10, 10}, Frame -> True]]]

Inset in ArrayPlot

3 Answers3

Here is a patch to effect this:
