Why is this 2D plot so slow?

Question

I first do a 3D Plot of four surfaces (eigenvalues of a $4\times4$ matrix) over $kx,kz$ (setting $ky=0$ all along). And then I try to give a 2D plot along three connected particular lines in $kx,kz$-plane, which is simply a tiny part of the 3D one. However, the 2D one turns out to be far slower than the 3D one. Also I use Evaluate in both cases, otherwise a weird mess (Why?). What's wrong with my code? And I'm wondering what the faster code ought to be.

zero2 = DiagonalMatrix[{0, 0}];
I2 = IdentityMatrix[2];
I4 = IdentityMatrix[4];
t = 1/2;
λ = 1;
Subscript[λ, z] = 1;
ϵ = 6 t;
b = {0, 0, 0, 1};

H[kx_, ky_, kz_] := 2 λ KroneckerProduct[PauliMatrix[3], PauliMatrix[1] Sin[ky] - PauliMatrix[2] Sin[kx]] + 2 Subscript[λ, z]   KroneckerProduct[PauliMatrix[2], I2] Sin[kz] + KroneckerProduct[PauliMatrix[1], I2] (ϵ - 2 t (Cos[kx] + Cos[ky] + Cos[kz]));
Subscript[H, 1][kx_, ky_, kz_] := b.{KroneckerProduct[PauliMatrix[2], PauliMatrix[3]], -KroneckerProduct[PauliMatrix[1], PauliMatrix[1]], KroneckerProduct[PauliMatrix[1], PauliMatrix[2]], KroneckerProduct[I2, PauliMatrix[3]]};
Eval[kx_, ky_, kz_] := FullSimplify[Eigenvalues[H[kx, ky, kz] + Subscript[H, 1][kx, ky, kz]]];

Plot3D[Evaluate[Eval[kx, 0, kz]],
  {kx, -π, π}, {kz, -π, π},
  AxesLabel -> Automatic, PlotLegends -> "Placeholder"
 ]

a0 = 1;
b1 = 2 π/a0;
b2 = 2 π/a0;
b3 = 2 π/a0;
BZKx = b1/2;
BZKz = b3/2;

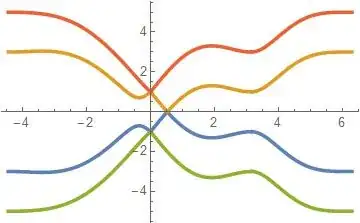

Plot[Evaluate@Eval[If[k <= 0, k/Sqrt[2], If[k <= BZKx, 0, BZKx]], 0, If[k <= 0, k/Sqrt[2], If[k <= BZKx, k, k - BZKx]]],
  {k, -Sqrt[2] BZKx, 2 BZKx},
  ImageMargins -> 0, PlotStyle -> Thickness[.01]
 ]

just out of curiosity: is this a band structure of some topological insulator? — hat, Feb 11 '16 at 09:33

score 19 · Accepted Answer · edited Apr 13 '17 at 12:55

You seem to be re-evaluating the eigenvalues at every point. Just use this definition:

Clear[Eval,kx, ky, kz];
Eval[kx_, ky_, kz_] =
  FullSimplify[
   Eigenvalues[H[kx, ky, kz] + Subscript[H, 1][kx, ky, kz]]];

Then the plots will be faster. This will symbolically evaluate the eigenvalues once, and the variables kx, ky, kz get substituted into the symbolic result when needed.

Regarding the need for Evaluate mentioned in the question, it's needed because Plot has attribute HoldAll as explained here.
