Figure in animated GIF is oscillating as it rotates

Question

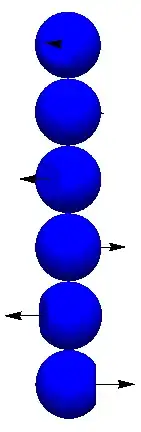

I'm trying to draw a figure as shown below and make it rotate around the vertical axis (z-axis) automatically.

This is how I generate the figure and make it rotate:

Δϕ = π 14.0/13.0;
p1 =
  Show[
    Table[
      RegionPlot3D[
        x^2 + y^2 + (z - j)^2 < 0.5^2 &&
        (x - 0.4 Cos[j Δϕ]) Cos[j Δϕ] + (y - 0.4 Sin[j Δϕ]) Sin[j Δϕ] < 0,
        {x, -0.5, 0.5}, {y, -0.5, 0.5}, {z, -0.5 + j, 0.5 + j},
        PlotStyle -> Blue, Mesh -> None],
      {j, 0, 5}],
      PlotRange -> All, BoxRatios -> Automatic];
p2 =
  Graphics3D[
    Table[
      Arrow[{{0.4 Cos[j Δϕ], 0.4 Sin[j Δϕ], j}, {Cos[j Δϕ], Sin[j Δϕ], j}}],
      {j, 0, 5}]];
p =
  Show[{p1, p2},
    Boxed -> False, Axes -> False,
    ViewPoint -> {0, -10, 0}, ViewCenter -> {0, 0, 2.5},
    ViewVertical -> {0, 0, 1}];
vc = AbsoluteOptions[p, ViewCenter][[1, 2]];
vp = AbsoluteOptions[p, ViewPoint][[1, 2]];
m = RotationMatrix [5 Degree, {0., 0., 1.}];
newvp = m.(vp - vc);
Export["a.gif",
  Table[
    Show[p,
      ViewPoint -> MatrixPower[m, j].(vp - vc) + vc,
      PlotRange -> All],
    {j, 0, 360/5 - 1}]];

This is how the gif file looks like

I don't understand why the gif is kind of oscillating in the horizontal direction, and the arrows seem turn around when a cycle is done and the next cycle starts. What I want is to have the rotating axis (here the z-axis) fixed while the figure is rotating. Which part of my code is wrong?

Answer 1

Perhaps the following will work for you. Since I worked it out more by trial-and-error than by expertise, there may be unnecessary code that remains. Mainly what I did was the following:

1. Computed the camera position before doing the export by a better method. Your computation of the camera position was the source of the oscillation.

2. Eliminated many options, some of which caused problems and others which were simply redundant. I also added a few options the improve the look of graphics.

Δϕ = π 14.0/13.0;
p1 =
  Table[
    RegionPlot3D[
      x^2 + y^2 + (z - j)^2 < 0.5^2 &&
      (x - 0.4 Cos[j Δϕ]) Cos[j Δϕ] + (y - 0.4 Sin[j Δϕ]) Sin[j Δϕ] < 0,
      {x, -0.5, 0.5}, {y, -0.5, 0.5}, {z, -0.5 + j, 0.5 + j},
      PlotStyle -> Blue,  Lighting -> "Neutral", Mesh -> None],
    {j, 0, 5}];
p2 =
  Graphics3D[{
    Black,
    Table[
      Arrow @ Tube[{{0.4 Cos[j Δϕ], 0.4 Sin[j Δϕ], j}, {Cos[j Δϕ], Sin[j Δϕ], j}}],
      {j, 0, 5}]}];
vp =
  Table[
    RotationTransform[θ, {0, 0, 1}, {0, 0, 0}][{0, -50, 3}],
    {θ, N[2 π Subdivide[36]]}];
Export[
  FileNameJoin[{$HomeDirectory, "Desktop", "RotatingSpheres.gif"}],
  Show[p1, p2,
    PlotRange -> {{-1, 1}, {-1, 1}, {-.5, 5.5}},
    Axes -> False,
    Boxed -> False,
    BoxRatios -> Automatic,
    SphericalRegion -> True,
    ViewPoint -> #] & /@ vp];

Update

At Yves Klett's behest, I have made the arrows into 3D tube-based arrows.
