Plot between multiple curves

Question

I have three functions, U1, U2, Dead. I would like to fill the area between the three curves when U2 is (only) above both U1 and Dead. This raises two issues relative to what I can find online. One is dealing with three vs. two curves filling and one is that the filling ends up only on a region. (I can find some things online on the latter---but I need a solution that works with the three curves.)

To be more specific: the functions are

U1[del_] = (1 - del)/del
U2[del_] = del
Dead[del_] = del*del*del

and right now I have

Plot[{U1[del], U2[del], Dead[del]},
   {del, 0, 1},
   PlotRange -> {0, 1},
   PlotStyle -> {{Blue, Dashed, Thick}, {Red, Dashed, Thick}, {Green, Dashed, Thick}},
   Filling -> {2 -> {3}},
   Frame -> True]

Mathematica graphics

This filled between U2 and Dead. But I want the filling to be between U2 and Max[U1, Dead] and only when U2 is above the max.

Any help would be appreciated. Apologies if I am writing in the wrong format---I am new. Thanks!

score 10 · Answer 1 · answered Mar 08 '16 at 17:35

10

f[s_] := Plot[{U1[del], U2[del], Dead[del],
              If[s[U2[del], #], #, U2[del]] &@Max[U1[del], Dead[del]]},
              {del, 0, 1}, PlotRange -> {0, 1},
              PlotStyle -> {{Blue, Dashed, Thick},
                           {Red, Dashed, Thick},
                           {Green, Dashed, Thick},
                            Transparent},
              Filling -> {2 -> {4}}, Frame -> True]

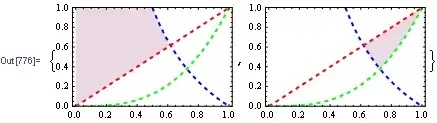

f /@ {Less, Greater}

Mathematica graphics

answered Mar 08 '16 at 17:35

Dr. belisarius

115,881
13
203
453

thanks! this is awesome! i appreciate it! – Amanda Mar 08 '16 at 18:34
May I bother you with a follow up: Would it be possible to explain the role of the "#" in this bit: If[s[U2[del], #], #, U2[del]] &@Max[U1[del], Dead[del]]}? Just want to understand/learn. Thanks again! – Amanda Mar 08 '16 at 22:05

score 7 · Accepted Answer · answered Mar 08 '16 at 19:17

I strongly applaud Dr. belisarius' use of an invisible curve to control the filling, but I think the following implementation of his idea is easier to understand.

U1[del_] := (1 - del)/del
U2[del_] := del
Dead[del_] := del^3

controlCurve[del_] :=
  Piecewise[
    {{U2[del], U1[del] > U2[del]},
     {U1[del], U1[del] > Dead[del]}},
    Dead[del]]

Plot[{U1[del], U2[del], Dead[del], controlCurve[del]}, {del, 0, 1},
  PlotRange -> {0, 1},
  PlotStyle ->
    {{Blue, Dashed, Thick}, {Red, Dashed, Thick},
     {Green, Dashed, Thick}, Transparent},
  Filling -> {2 -> {{4}, Yellow}},
  Frame -> True]

thanks m_goldberg---indeed this is easier to understand! – Amanda Mar 08 '16 at 23:46 — Amanda, Mar 08 '16 at 23:46
C'est véritablement utile puisque c'est joli. – Dr. belisarius Mar 09 '16 at 03:15 — Dr. belisarius, Mar 09 '16 at 03:15
