Free symbols in an expression

Question

I am starting to learn the basic MMA grammar these days. I hope I do not ask too much stupid questions. Here is one of them:

Getting free symbols in an expression can be done by following codes:

x = a + b;
y = x*x + x*c + d;
DeleteDuplicates@Cases[y, _Symbol, -1]

> {a, b, c, d}

These is no problem yet. The problem comes when the expression comes with Hold, HoldForm or Defer.

y = Defer[x*x] + x*c + d;
DeleteDuplicates@Cases[y, _Symbol, -1]

> {a, b, c, d, a + b}

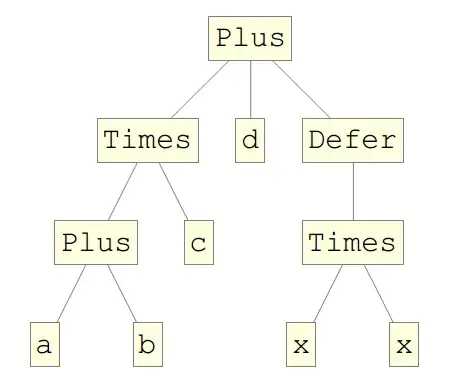

y // TreeForm

The part I do not understand is Cases return a+b as free symbol, but TreeForm has a leaf of x. How to interpolate these outpus. To make the question even intersting, consider:

y = Defer[x*x] + HoldForm[x*c] + d;
DeleteDuplicates@Cases[y, _Symbol, -1]

> {d, a + b, c}

y // TreeForm

If I want the free symbol as shown in TreeForm, which is c, d, x in the last example. What should I input?

Answer 1

Your problem has little to do with Hold or any of its cousins. It has to do with the evaluator recursively evaluating symbols until it gets no changes. This can be demonstrated by using Trace.

x = a + b;
y = Hold[x*x] + x*c + d;
Trace[DeleteDuplicates @ Cases[y, _Symbol, -1]]

Note that Cases returned {a, b, c, d, x, x}, but then x got evaluated in the argument sequence passed to DeleteDuplicates, producing the result you don't want.

To get what you want you could do the following, using Block to locally make x a free variable.

x = a + b;
y = Hold[x*x] + Hold[x]*c + d;
Block[{x},
  Trace[DeleteDuplicates@ Cases[y, _Symbol, -1]]]

But consider that if you assign y within the block, you don't need to worry about Hold.

x = a + b;
Block[{x},
 y = x*x + x*c + d;
 Trace[DeleteDuplicates @ Cases[y, _Symbol, -1]]]

Update 1

As to why

 y = Hold[x*x] + Hold[x]*c + d;
 Cases[y, _Symbol, {-1}]

produces

{d, c, a + b, a + b, a + b}

rather than

{d, c, x, x, x}

This has a simple explanation. Cases actually returns {d, c, x, x, x}, but recall this is the short form for List[d, c, x, x, x]. Now List is function (although you may be thinking of it as a data type), so the evaluator evaluates this function call as well any other. The 2nd step in the evaluation cycle is to evaluate the function's argument, so of course x gets evaluated.

Update 2

After thinking this over for a while, it occurred to me that you might be interested in another approach to restricting evaluation. This will give a display form that meets your requirements.

y = ReleaseHold[Hold[x*x + x*c + d] /. HoldPattern[s : x | c | d] -> HoldForm[s]]

d + c x + x^2

y can still be evaluated with

y // ReleaseHold

(a + b)^2 + (a + b) c + d

but now

result = DeleteDuplicates @ Cases[y, HoldForm[_], {-2}]

gives

{d, c, x}

However, remember this is for display only. The internal form is

result // FullForm

List[HoldForm[d], HoldForm[c], HoldForm[x]]

Like y, result can be evaluated with ReleaseHold.

Answer 2

x = a + b;

y = Defer[x*x + g] + 6 x*c + Pi*d + Sin[a*E];

Variables@Level[y, {-1}]

(*  {a, b, c, d, g}  *)

Variables@Cases[y, _Symbol, -1]

(*  {a, b, c, d, g}  *)

EDIT:

y = Defer[x*x] + HoldForm[x*c] + d;

var = Cases[y,
   z_Symbol?(! NumericQ[#] &) :> If[AtomQ[z], z, HoldForm[z]], -1] //
  Union

var // RotateLeft // TreeForm
