Random walk in limited range

Question

m = {{1, 1}, {1, 1}, {1, 1}, {1, 1}, {1, 1}, {1, 1}, {1, 1}, {1,
1}, {1, 1}, {1, 1}};
m2 = {{1, 1}, {1, 1}, {1, 1}, {1, 1}, {1, 1}, {1, 1}, {1, 1}, {1,
1}, {1, 1}, {1, 1}};
Manipulate[
 Do[
  m[[n]] = m[[n]] + RandomChoice[{{0, 1}, {1, 0}, {0, -1}, {-1, 0}, {0, 0}}];
  , {n, 10}];
 Do[
 m2[[n]] = m2[[n]] + RandomChoice[{{0, 1}, {1, 0}, {0, -1}, {-1, 0}, {0, 0}}];
   , {n, 10}];
Show[ListPlot[m, PlotStyle -> Red]
  , ListPlot[m2, PlotStyle -> {PointSize[0.03]}]]
, {n, 1, 20}]

This is pseudo-randomwalk. I want to plot in only square (0,0),(100,0),(0,100),(100,100). Please teach me the random walk in limited range.

Here are links to learn from, have you been there? http://mathematica.stackexchange.com/search?q=random+walk — Kuba, Apr 04 '16 at 07:16
Do you think it is a duplicate question? Bounded random walk — Kuba, Apr 04 '16 at 07:17
As I see it, the only necessary modification in m_goldberg's code for your purposes is to modify the definition for nxt: nxt = pt + RandomChoice[{{0, 1}, {1, 0}, {0, -1}, {-1, 0}, {0, 0}}] — J. M.'s missing motivation, Apr 04 '16 at 07:57
@J.M. - also a small modification of the bounds, so that the rectangle is centered on the point {50,50} rather than {0,0} — Jason B., Apr 04 '16 at 08:00
RegionMember not supported in version 9. What should I change code? — Shakariky, Apr 04 '16 at 08:55
You should have mentioned that you were on version 9 to begin with. — J. M.'s missing motivation, Apr 04 '16 at 10:23

score 1 · Answer 1 · edited Apr 13 '17 at 12:56

This modification of m_goldberg's code should work on version 9.0

nextPt[pt_, r_, bounds_] :=
  Block[{nxt = pt + r {Cos[#], Sin[#]} &[RandomReal[2. π]]},
   If[And @@ Thread[bounds[[1]] <= nxt <= bounds[[2]]], Return[nxt]];
   nextPt[pt, r, bounds]];
walk[start : {_Real, _Real}, range : {_Real, _Real}, r_Real?Positive,
   steps_Integer?Positive] :=
  Module[{bounds}, bounds = {start - range/2, start + range/2};
   NestList[nextPt[#, r, bounds] &, start, steps]];
walkAnimation[path_, opts : OptionsPattern[]] :=
  ListAnimate[
   Table[
    Graphics[{Line[path[[;; n]]],
      Red, Disk[First[path], Scaled[.015]],
      Blue, Disk[path[[n]], Scaled[.015]]},
     opts, Frame -> True],
    {n, Length@path}], 10];

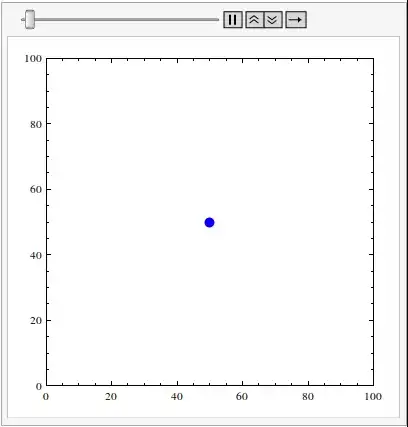

walkAnimation[walk[{50., 50.}, {100., 100.}, 5., 200],
 PlotRange -> {{0, 100}, {0, 100}}]

Glad to help, welcome to the site, take the [tour], come back if you have other troubles, and try to answer questions when you can. Next time you have a question, if you are still using a previous version of Mathematica, be sure to include that in the quesiton, as it can help get to the pertinent info more quickly. — Jason B., Apr 04 '16 at 09:35
