Possible Bug in ArrayMesh

Question

Bug introduced in V10.4 and fixed in 10.4.1

---

Suppose we have the following array from which we intend to create an ArrayMesh:

arr = {{{1, 1, 1}, {1, 0, 1}, {1, 1, 0}}, {{1, 1, 1}, {0, 1, 1}, {1, 1,
   0}}, {{0, 1, 0}, {0, 1, 1}, {0, 0, 1}}};

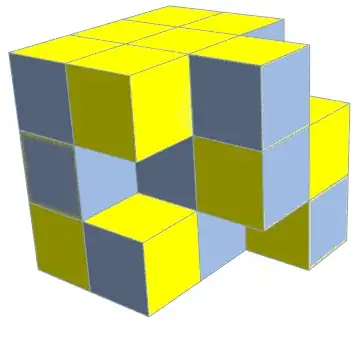

If we create the ArrayMesh and use one of the styling Options in this case MeshCellStyle, the color is not evenly applied:

ArrayMesh[arr, MeshCellStyle -> {{2, All} -> Yellow}]

And as you manipulate this mesh object it flickers like crazy:

This does not happen if you use HighlightMesh to style it:

HighlightMesh[ArrayMesh[arr], {Style[2, Yellow]}]

.

Can anyone reproduce this behavior. Note that ArrayMesh is new in 10.4. I'm using Windows 10 64bit

Answer 1

This is an artifact in Graphics3D rendering (Z-fighting) which is generally difficult to avoid when using a depth buffer.

While ArrayMesh is new in 10.4, you would see similar behavior if you did copy and paste the result into an older version.

As a possible workaround, try

SetOptions[$FrontEnd,
   RenderingOptions -> {"Graphics3DRenderingEngine" -> "BSPTree"}]
