Notebooks have a Visible option, but Cell // Options doesn't mention any equivalent for Cells. Can you suggest a workaround?

Alexey Popkov
  • 61,809
  • 7
  • 149
  • 368
mitochondrial
  • 1,843
  • 10
  • 16
  • Select the cell to be "hidden" and use the menu command Cell | Cell Properties | Open (for "hidden" cell Open should then be unchecked). – Bob Hanlon Apr 29 '16 at 04:20
  • Thanks for your reply ! This problem is that this cell still takes its spaces: Cell[BoxData["a"], "Input", Background->Hue[.8], CellMargins->0, CellOpen->False, CellFrameMargins -> 0, CellFrame->False, FontSize->1 ShowCellBracket->False ] – mitochondrial Apr 29 '16 at 04:29

1 Answers1

5

UPDATE

As Kuba correctly notes in the comment, with negative CellMargins we can make the cell height to be effectively zero:

CellPrint@Cell[BoxData["a"],
  CellElementSpacings -> {"CellMinHeight" -> 0, "ClosedCellHeight" -> 0},
  Background -> Hue[.8], CellMargins -> -2, CellOpen -> False, CellFrame -> 0,
  ShowCellBracket -> False]

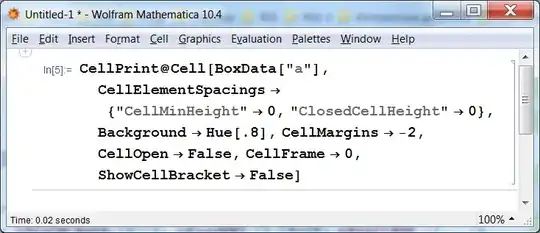

screenshot

For the check we can add another "Input" cell after our zero-height cell, take a screenshot, then delete our cell programmatically and take a screenshot again, then compare the screenshots. Here are the two screenshots taken with 100% global Magnification setting, at the first im1 only the first two "Input" cells are evaluated (the invisible cell is printed), at the second im2 the Notebook is completely evaluated (as seen from the cell labels; the invisible cell is deleted):

im1 = Import["https://i.stack.imgur.com/jQ2kx.png"];
im2 = Import["https://i.stack.imgur.com/cVLJJ.png"];
ImageAssemble[{{im1, im2}}]

two screenshots

Now compare specifically the distances between the first and the second "Input" cells:

{i1, i2} = ImageTake[#, {216, 250}, {489, 515}] & /@ {im1, im2}

output

i1 === i2

True

They are identical! Indeed we have made a zero-height completely invisible Cell!

Original answer

It seems to be impossible to create a Cell which takes zero space in the Notebook, but with CellElementSpacings you can minimize its height:

CellPrint@Cell[BoxData["a"],
  CellElementSpacings -> {"CellMinHeight" -> 0, "ClosedCellHeight" -> 0},
  Background -> Hue[.8], CellMargins -> 0, CellOpen -> False, CellFrame -> 0,
  ShowCellBracket -> False]

screenshot1

The above screenshot is taken with global Magnification set to 150%, the generated Cell has height 3 pixels on the screen. If we set Magnification to 100%, the height becomes 2 pixels:

screenshot2

Of course you can make the Cell invisible by giving it transparent Background:

CellPrint@Cell[BoxData["a"],
  CellElementSpacings -> {"CellMinHeight" -> 0, "ClosedCellHeight" -> 0},
  Background -> GrayLevel[0, 0], CellMargins -> 0, CellOpen -> False, CellFrame -> 0,
  ShowCellBracket -> False]

(for some reason Background -> Opacity[0] is forbidden but Background -> GrayLevel[0, 0] works).

Community
  • 1
Alexey Popkov
  • 61,809
  • 7
  • 149
  • 368
  • 1
    Such settings of Background are forbidden: "The specified setting for the option Background cannot be used." – Rom38 Apr 29 '16 at 06:20
  • 1
    @Rom38 Thank you, I have corrected the code: Background -> GrayLevel[0, 0] works. – Alexey Popkov Apr 29 '16 at 06:23
  • 2
    You can use negative Margins to get rid of those 2 pixels, e.g.: CellMargins -> -2 they do this for "SlideShowHeader" style. (Core.nb) – Kuba Apr 29 '16 at 08:49
  • 1
    @Kuba Thank you, it indeed allows to make a zero-height Cell, please see the "UPDATE" section. – Alexey Popkov Apr 29 '16 at 10:16
  • Thanks for your fantastic answer !! I was induced to ask this question by the problem of embedding plain text metadata in a notebook, but now, pondering further, I wonder if invisible cells open the Pandora's box, introducing a feature exploitable for security threats. – mitochondrial Apr 29 '16 at 14:11
  • 1
    @mitochondrial TaggingRules seem to be convenient for storing information inside of Notebook, see for example this answer. – Alexey Popkov Apr 29 '16 at 14:24
  • @Alexey Popkov Thanks for the hint. It's just what I'm struggling with since a couple of days. Any advice will be very welcomed ! – mitochondrial Apr 29 '16 at 16:35
