In Mathematica 7, the default plot color is a purple-like color (although I think it is not Purple). Is it possible to use Mathematica to determine the RGB color values of the default plot color? Thanks for your time.

Andrew
  • 10,569
  • 5
  • 51
  • 104
  • 1
    This one was answered here http://stackoverflow.com/questions/5391825/what-are-the-standard-colors-for-plots-in-mathematica – Dr. belisarius Oct 09 '12 at 18:39

4 Answers4

12

All the default colors can be found in ColorData[1]. To obtain the RGB value of the first color you just need to type:

ColorData[1, 1]
(* RGBColor[0.2472, 0.24, 0.6] *)

To check all subsequent colors just change the n in ColorData[1, n]. To obtain the values on the scale 0 to 255:

Round[Rescale[Table[ColorData[1, 1][[i]], {i, 3}], {0, 1}, {0, 255}]]
(* {63, 61, 153} *)
VLC
  • 9,818
  • 1
  • 31
  • 60
7

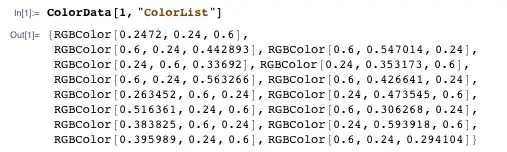

ColorData[1,"ColorList"] gives the full list for the default colour set.

enter image description here

Mike Honeychurch
  • 37,541
  • 3
  • 85
  • 158
4

The closest source of the default style colors I could find is this internal function:

System`Private`$PlotStyleFunction[3]

{{Hue[0.67, 0.6, 0.6]}, {Hue[0.906068, 0.6, 0.6]}, {Hue[0.142136, 0.6, 0.6]}}

Yielding e.g. the first three style colors. These as noted by others are exceedingly close to ColorData[1], the function of which is:

ColorData[1][[4]]

(ToColor[Hue[N[FractionalPart[0.67 + (2 (#1 - 1))/GoldenRatio]], 0.6, 0.6],
  RGBColor] &)[Floor[#1 - 1, 1] + 1] &

If you are interested in changing the defaults don't miss:

How to change the default ColorData used in Mathematica's Plot?

Community
  • 1
Mr.Wizard
  • 271,378
  • 34
  • 587
  • 1,371
  • 1
    Since System\Private`$PlotStyleFunctionreturns HSB values as opposed to RGB values, if you want to see the RGB values, do this:ColorConvert[#, RGBColor] & /@ Flatten[System`Private`$PlotStyleFunction[3]]`. – J. M.'s missing motivation Oct 09 '12 at 22:37
3

The default color is Hue[0.67, 0.6, 0.6]

M.R.
  • 31,425
  • 8
  • 90
  • 281
  • 1
    How did you determine this or where did you find this documented? -- Thx – Jagra Oct 09 '12 at 16:57
  • Thanks. Is it possible to convert those values to RGB values used in many paint programs? – Andrew Oct 09 '12 at 16:57
  • Also, it seems that in some programs (for example, Microsoft Word 2003), HSL values go from 0 to 255, not 0 to 1 as in Mathematica. I guess, then, I should just multiply by 255 and round to the nearest integer? – Andrew Oct 09 '12 at 17:00
  • 1
    @Andrew Yes, certainly. – Alexey Popkov Oct 09 '12 at 17:33
