Hovering over specific coordinates on a picture

Question

I'm working on a small function which can be used so that when the user hovers over certain coordinates in a LocatorPane, these coordinates can be checked against a separate list of coordinates, and there can be different graphical outputs on a separate graphic, depending on what coordinates the user has hovered over.

ttp = LocatorPane[Dynamic[userEditedProbeCoordinates], tmp,
Appearance -> (probeDissFunc[WorstcaseDistressWTT16, probeList])]

coordinates = Dynamic[MousePosition["Graphics"]]

This get's me the coordinates from the user.

If[coordinates - 893, 368 < {\[PlusMinus]10, \[PlusMinus]10}, yay, boo]
If[coordinates == 893, 368, hooray, stop]
If[coordinates \[Subset] userEditedProbeCoordinates, woop, nooooo]

Here are 3 of my attempts to make something happen. None of them were successful.

The list of coordinates looks like this:

{{893, 368}, {863, 327}, {885, 512}, {800, 502}, {766, 360}, {710,
374}}

Thanks in advance

Answer 1

You can also do this without LocatorPane. Let's start by creating test data:

SeedRandom[25];
pts = RandomReal[200, {10, 2}];
labels = RandomInteger[1000, 10];
map = Deploy@Graphics[{
     Disk[#, 10] & /@ pts,
     PointSize[Large], Red, Point[pts]
     }, PlotRange -> {{0, 200}, {0, 200}}];

It is important to specify the plot range explicitly, as we will use this in the next step. I use Deploy so the graphics can't be selected, which is appropriate for a display. The black disk represents the area of radius ten around the point, represented by a red dot.

nf = Part[labels, Nearest[pts -> Automatic, #, {1, 10}]] &;
EventHandler[map, {
  "MouseMoved" :> (hovering = nf[200 MousePosition["EventHandlerScaled"]])
  }]

In the previous step we initialized a list labels. Element 1 is the label for disk 1, element 2 for disk 2 and so on. Here we define a function nf that, given a coordinate, returns the label of the closest point within a radius of 10. Finally we use an event handler to update a variable hovering. MousePosition["EventHandlerScaled"] gives a position {x,y} where x and y are in the range (0,1) inside the graphic. Multiplying this by the plot range we get the actual coordinate inside the graphic.

As the animation shows the label of the currently hovered point can now be retrieved by Dynamic[hovering]. This value can be displayed anywhere it's needed, in the graphics or elsewhere.

Answer 2

As an example

img = Graphics[{Blue, Disk[{0, 0}, 1], Red, Disk[{0, 0}, 0.5]}, ImageSize -> 300];

tag[p_] := Piecewise[{{"Red", Norm[p] < 0.5}, {"Blue", 0.5 < Norm[p] < 1},
           {"White", Norm[p] > 1}, {"Boundary", Norm[p] == 0.5 || Norm[p] == 1}}]

csign[{x_, y_}] := StringForm["[``,``]", Sign[x], Sign[y]]

Manipulate[Show[img,PlotLabel -> StringForm["`` ``", tag[p], csign[p]]],
           {{p, {0, 0}}, Locator}]

With multiple locators

n = 6;
col = {Black, Red, Blue, Green, Orange, Yellow};
txt = {"Black", "Red", "Blue", "Green", "Orange", "Yellow", "Empty"};
rad = {0, 0.2, 0.3, 0.5, 0.7, 0.8, 10};
img = Graphics[Table[{col[[i]], Disk[{0, 0}, rad[[i]]]}, {i, n, 1, -1}]];

tag[p_] := Piecewise[ Table[{txt[[i+1]], rad[[i]]<Norm[p]<rad[[i+1]]}, {i, n}]]

coord = RandomReal[{-1, 1}, {n, 2}];

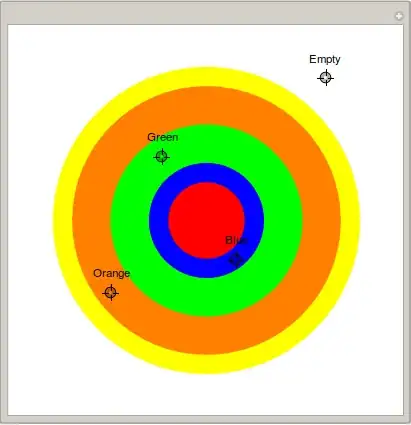

Manipulate[Show[img, ImagePadding -> 20,  Epilog -> {
 Text[tag[p1], p1 + {0, 0.1}], Text[tag[p2], p2 + {0, 0.1}],
 Text[tag[p3], p3 + {0, 0.1}], Text[tag[p4], p4 + {0, 0.1}]}],
 {{p1, coord[[1]]}, Locator}, {{p2, coord[[2]]}, Locator},
 {{p3, coord[[3]]}, Locator}, {{p4, coord[[4]]}, Locator}]
