How to use quantities obtained by solving equations directly to plot

Question

I want to know how we could use the quantities we found by solving simultaneous equations, directly into plotting graphs. For example I have this Mathematica code; it gives the values of a and b but does not plot.

Clear[a, b]
Solve[{a + b == 30, 2*a + 3*b == 50}, {a, b}]
Plot[a*x + b*x, {x, 0, 10}]

Welcome to Mathematica.SE! I suggest the following: 1) As you receive help, try to give it too, by answering questions in your area of expertise. 2) Take the tour! 3) When you see good questions and answers, vote them up by clicking the gray triangles, because the credibility of the system is based on the reputation gained by users sharing their knowledge. Also, please remember to accept the answer, if any, that solves your problem, by clicking the checkmark sign! — Michael E2, Jun 16 '16 at 17:53
You can format inline code and code blocks by selecting the code and clicking the {} button above the edit window. The edit window help button ? is also useful for learning how to format your questions and answers. You may also find this meta Q&A helpful — Michael E2, Jun 16 '16 at 17:53
See (18393, ans. 18706) for advice. See also (3175), (6669). — Michael E2, Jun 16 '16 at 17:56

Ben Kalziqi · Accepted Answer · 2016-06-16T17:57:38.057

2

You'll want to do

sol = First@Solve[{a+b==20,2a+3b==50},{a,b}];
Plot[a x + b x/.sol,{x,0,10}]

Solve gives you a list of Rules. Here, there's just one such rule, but it's still wrapped in an "extra" set of braces because It's a list of rules. Use First@ (equivalent to wrapping the expression in First[]) to get the first element of that list, which is your desired Rule.

Using /. just lets you plug the rule from 'sol' into your equation; i.e. a x + b x /. sol = a x + b x /. {a->10,b->10} = 10x + 10x = 20x, which you can Plot.

edited Jun 16 '16 at 17:57

answered Jun 16 '16 at 17:52

Ben Kalziqi

1,082
8
17

Thanks a lot Ben, it really works. Actually it was for a bigger project than that and really helpful, saved a lot of work for me. – Ajib Paudel Jun 16 '16 at 18:05
Happy to help. Remember to search the documentation; it's extremely helpful! Be sure to read through this as well, as @Michael E2 suggested. – Ben Kalziqi Jun 16 '16 at 18:09

score 2 · Answer 2 · answered Jun 16 '16 at 18:21

sol = Solve[{a + b == 20, 2 a + 3 b == 50}, {a, b}]

{{a -> 10, b -> 10}}

See ReplaceAll (/.) and Applying Transformation Rules

point = {a, b} /. sol

{{10, 10}}

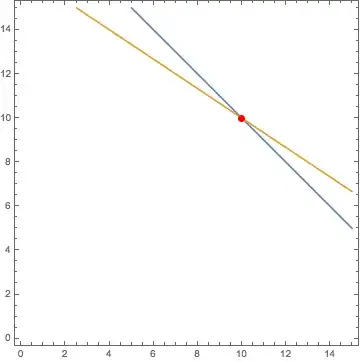

ContourPlot[{a + b == 20, 2 a + 3 b == 50}, {a, 0, 15}, {b, 0, 15},
Epilog -> {Red, PointSize[Large], Point@point}]
