Someone could get a similar solution like this animation?

enter image description here

I believe the solution is useful for demonstrations in class to other users who teach Math.

Spreading of a Thin Liquid Drop Under the Influence of Gravity, Rotation and Non-Uniform Surface Tension

LCarvalho
  • 9,233
  • 4
  • 40
  • 96
  • 5
    If similar is needed then: 63200. "I declare that I have no idea how to get started" - very convenient :) You can always try a straightforward approach with Graphics3D Table Point and positions dependent of a parameter. p.s. useful search query animation + generative-art – Kuba Aug 04 '16 at 06:26
  • 1
    By your comment, now can I have an idea how to start :). If no one, for now, add a solution, I will trying through these references. Grateful. – LCarvalho Aug 04 '16 at 06:46
  • I'm going to try to implement a drop of water. Then yes it would be innovative. – LCarvalho Aug 04 '16 at 06:52
  • 3
    You might be interested in this. – J. M.'s missing motivation Aug 04 '16 at 06:59
  • watching the comments, I found that I don't know do research on the site. How much information that I have not found. – LCarvalho Aug 04 '16 at 07:16
  • 1
    @LeandroMacieldeCarvalho. I find that using the search bar within the site doesn't work all that great. When I have a question, I usually just google "mathematica stack exchange ..." where "..." are some key-words for what I'm looking for. You can also try searching within tags within the site by searching, for instance, for "[plotting] animation". – march Aug 04 '16 at 16:23
  • You're asking for a "solution" but don't say what it is the solution of. It's certainly not the linear wave equation in two dimensions, because then you would not get sine solutions as stated in the question. Just want to point this out so that people don't mistakenly believe this represents a physical wave in 2D. – Jens Aug 11 '16 at 20:30
  • 1
    Also, it's very important to give the source whenever you post material that hasn't been generated by code you are posting. You may be violating copyright, – Jens Aug 11 '16 at 20:38
  • @Jens I took this picture of a Facebook message. – LCarvalho Aug 11 '16 at 20:48

1 Answers1

24

Thanks to J.M.

drop = SetAlphaChannel[#, ColorNegate@#] &@
  Binarize@Rasterize@
    ParametricPlot[{r Cos[t] (1 - Sin[t]), -3 +
       r (5/2 (Sin[t] - 1) + 3)}, {t, 0, 2 Pi}, {r, 0, 1},
     BoundaryStyle -> None, Axes -> False, Frame -> False]

Something to start with:

circle = Table[
  Translate[
    Point[{##, 0} & @@@ CirclePoints[r, 10 + 20 r]],
    {0, 0, Dynamic[f[#, t]] &@r}
  ],
  {r, .5, 20, .5}
];

f[r_, t_] := UnitBox[(r - t)/(2 Pi) - .5] Sin[r - t];
t = -4 Pi;

Column@{
  Trigger[Dynamic[t], {-4 Pi, 20}] ,
  Graphics3D[
   {AbsolutePointSize@2, circle,
    Dynamic @ If[t < -1.9 Pi,
      Inset[drop, {0, 0, -(t + 2 Pi)}, Automatic, Scaled[{.03, .05}]],
      {}
    ]
    },
   ViewVertical -> {0, 0, 1}, ImageSize -> 700,
   PlotRange -> {20 {-1, 1}, 20 {-1, 1}, 10 {-1, 1}},
   ViewAngle -> Pi/16, Boxed -> False, ViewPoint -> {5, 0, 3},
   BoxRatios -> Automatic]}

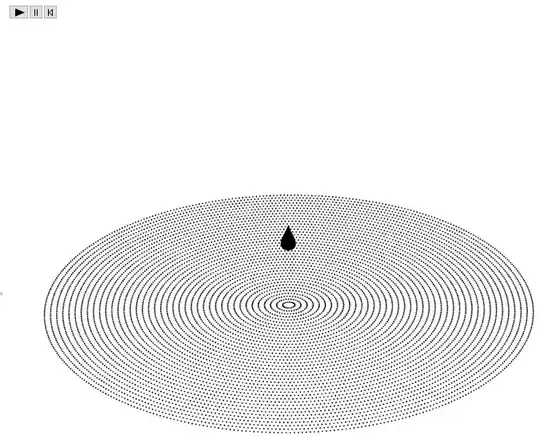

enter image description here

Kuba
  • 136,707
  • 13
  • 279
  • 740
  • 3
    beautiful...+1 can almost here the drop :) – ubpdqn Aug 04 '16 at 11:01
  • 1
    @ubpdqn Thanks, but let's be clear, it is not the prettiest one :) Though I don't care, my goal in such cases is to create something interactive rather than a neat gif. – Kuba Aug 04 '16 at 11:19
  • 2
    yes it would not be used in Disney CGI...but terse and perhaps motivates...I am off to sleep :) – ubpdqn Aug 04 '16 at 11:53
  • 1
    Great job! Now I will study your code. I am beginner and I am thrilled to see that there are several solutions using this software. – LCarvalho Aug 04 '16 at 21:25
