6

Any clues on how to fix the fonts? It seems the font kerning is wrong. It happens both in graphics and in all sorts of text styles...

This happens with Mathematica system fonts but also with certain styles in graphics. Moreover, when I select with the mouse cursor the affected text, the selected text does jerky movements with glyphs moving on top of neighbouring glyphs.

This issue seems to be related to this: Mathematica 10.4.1 broken fonts when saving as PDF

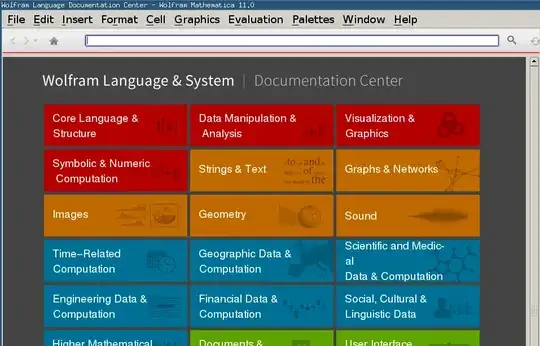

Please look at the snapshots below:

enter image description here

enter image description here

enter image description here

enter image description here

Community
  • 1
Ramiro Magno
  • 325
  • 1
  • 10

1 Answers1

5

I think I managed to narrow down the problem to the font Helvetica. It seems Mathematica was relying on my system having Helvetica already installed, which I did not.

After installing a package for Arch Linux, namely https://aur.archlinux.org/packages/ephifonts/, which includes the font Helvetica, I now get the previous snapshots looking like this:

enter image description here

enter image description here

enter image description here

Ramiro Magno
  • 325
  • 1
  • 10
  • 1
    It would be nice if someone could replicate this by removing Helvetica from his/her system and check if he/she gets the same issues as I did. – Ramiro Magno Aug 17 '16 at 01:10
