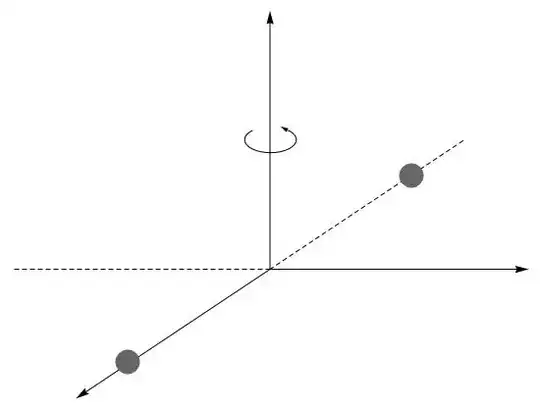

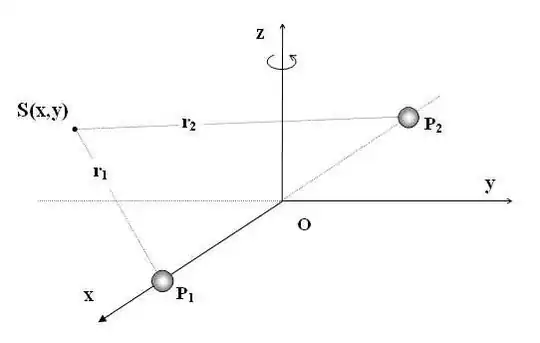

I want to produce the following schematic
A starting code
Clear["Global`*"];
a1 = Graphics[{Arrowheads[0.025], Arrow[{{0, 0}, {2, 0}}]}];
a2 = Graphics[{Dashed, Line[{{0, 0}, {-2, 0}}]}];
a3 = Graphics[{Arrowheads[0.025], Arrow[{{0, 0}, {0, 2}}]}];
a4 = Graphics[{Arrowheads[0.025], Arrow[{{0, 0}, {-1.5, -1}}]}];
a5 = Graphics[{Dashed, Line[{{0, 0}, {1.5, 1}}]}];
p1 = ListPlot[{{-1.1, -0.72}},
PlotStyle -> {GrayLevel[0.4], PointSize[0.045]}];
p2 = ListPlot[{{ 1.1, 0.72}},
PlotStyle -> {GrayLevel[0.4], PointSize[0.045]}];
Show[{a1, a2, a3, a4, a5, p1, p2}, ImageSize -> 550]
I can also easily insert all the text. My problem is how to insert the twisted arrow around the z axis. Any ideas?
